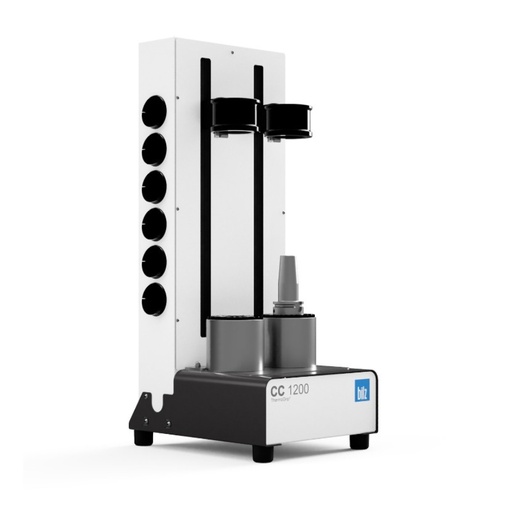

The CC1200 Contact Cooler offers an ideal solution for precise and efficient tool cooling. Designed to meet the highest demands, this advanced technology boasts user-friendly features that optimize your cooling processes and extend the lifespan of your shrink fit chucks.

Features:
• Shelf for cooling inserts
• Stand-alone variant
• Same height as the ISG1200 - easy repositioning of the mounts
• 2 forcibly guided contact coolers preventing any tool damage

Benefits:
• The forced contact cooling system ensures constant and even temperature control, ensuring optimal performance from your tools
• Cooling in seconds significantly minimizes downtime and maximizes productivity
• The CC1200 Contact Cooler eliminates the need to actively cool down the emulsion, saving time and effort
• The cooling elements do not damage the tool cutting edge, maintaining the quality of your tools

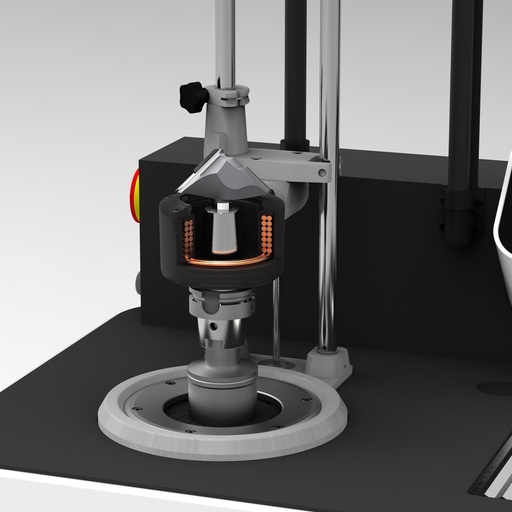

Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...)

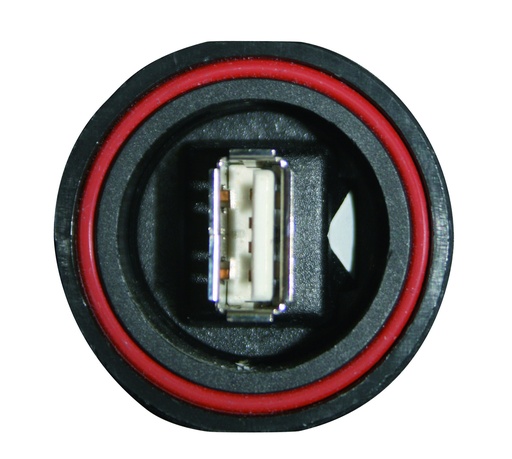

Connection of the USB-connector on the distributor board to the plug and socket on the generator box.

Suitable for following machines: ISG2410WK1, ISG2430TLK, ISG2430TWK, ISG3410WK1, ISG3410WK4, ISG3430TLK, ISG3430TLK4, ISG3430TWK, ISG4410WK1, ISG4410WK2

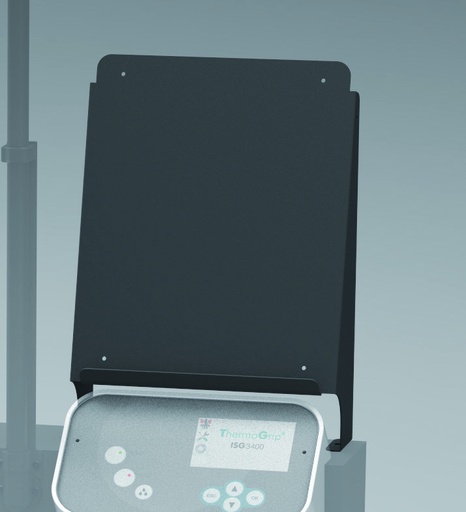

Tray for documents up to DIN A4, for example tool plans, instructions.

Suitable for all the TLK, TWK and WK machines.

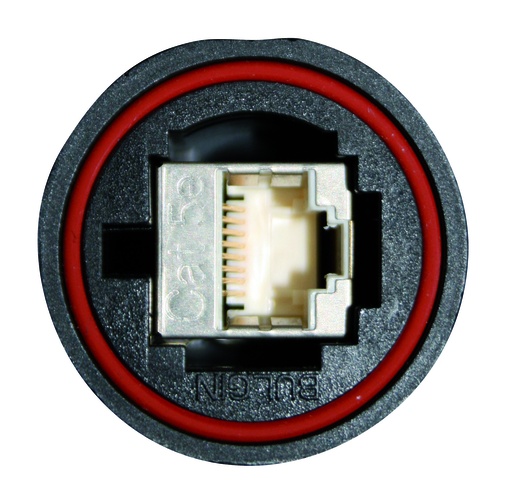

Connection of the LAN-connector on the control board to the plug and socket on the generator box (RJ45).

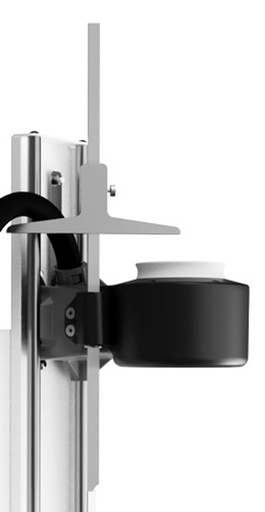

Optional Length Presetting Retrokit for ISG1200.

Application / Features
• Length presetting for easy adjustment of projecting length and the total dimension
• Quick and easy handling
• Adjustment accuracy +/- 0.05 mm (for maximum accuracy, please use separate adapter)
• Total measuring length 400mm, other lengths on request
• Increased safety due to end position detection of the length preset

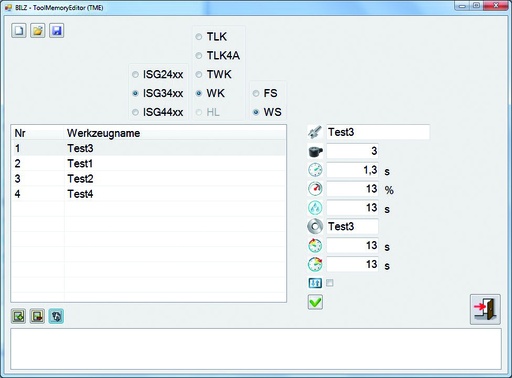

PC program with which customer-specific designations and corresponding shrink parameters can be set up.

sSuitable for following machines: ISG2410WK1, ISG2430TLK, ISG2430TWK, ISG3410WK1, ISG3410WK4, ISG3430TLK, ISG3430TLK4, ISG3430TWK, ISG4410WK1, ISG4410WK2

Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit.

Suitable for the following machines: ISG2410WK1, ISG3410WK1, ISG3410WK4, ISG3430TLK4, ISG4410WK1, ISG4410WK2

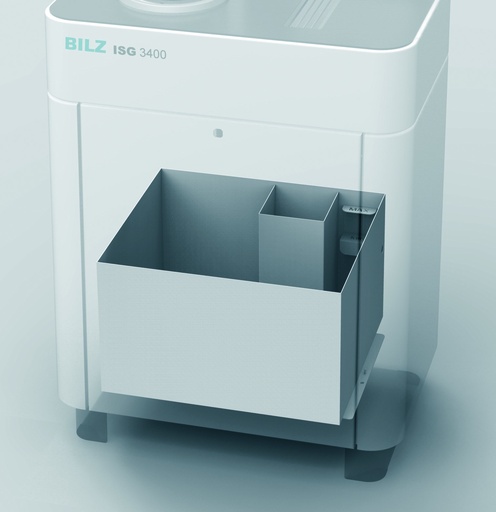

The XL tank replaces the standard tank and increases the coolant volume by 33%.

Suitable for the following machines: ISG2410WK1, ISG3410WK1, ISG3410WK4

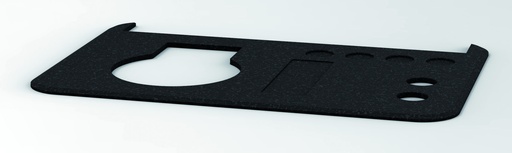

High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters.

Side storage table with rubber mat for better comfort.

Suitable for following machines: ISG2410WK1, ISG3410Wk1, ISG3410WK4

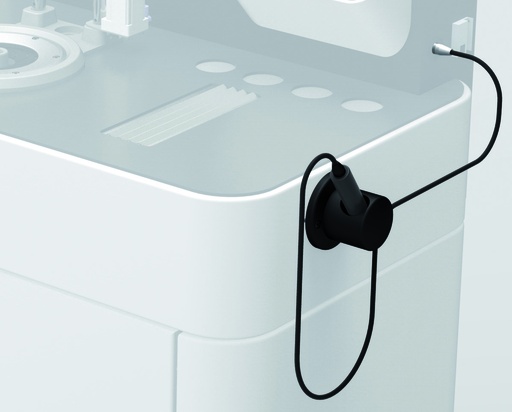

Bilz RFID evaluation unit with handheld chip reader and holder.

Suitable for following machines: ISG2410WK1, ISG2430TWK, ISG3410WK1, ISG3410WK4, ISG3430TLK4, ISG3430TWK, ISG4410WK1, ISG4410WK2

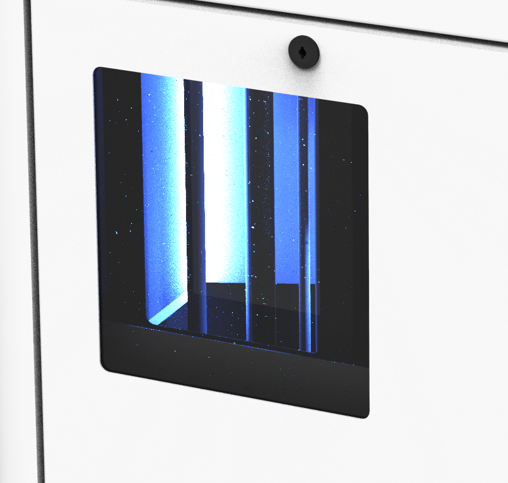

Maintenance Window provides security and transparency during cooling process.

Suitable for following machines: ISG3410WK1, ISG3410WK4

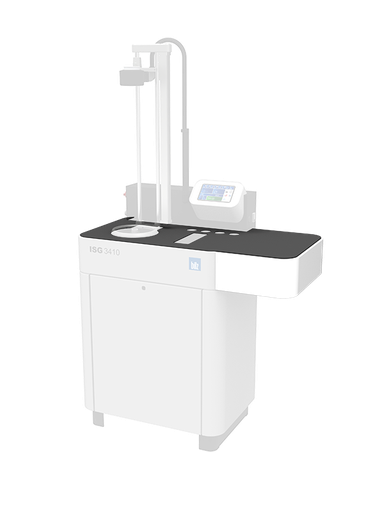

Side storage table with Corian plate for better comfort.

Suitable for following machines: ISG2410WK1, ISG3410Wk1, ISG3410WK4

Identification location tray for pole discs ISGS3201-0 up to 3 (Ø 3 – 32 mm). During automatic shrinking the suitable pole disc is displayed via LED in the tray.

Suitable for the following machines: ISG2410WK1, ISG2430TWK, ISG3410WK1, ISG3410WK4, ISG3430TLK4, ISG3430TWK

Specially adapted coil geometry for optiomum heat transfer to the stainless shrink fit chuck. The scope of delivery includes the clamping ring with bayonet lock, ferrite discs not included.

Suitable for 3400WK-WS series only.

Following discs are available:
For tool diameter less than 9mm : 5174378
For tool diameter less than 6mm : 5174087
For tool diameter less than 3mm : 5174387

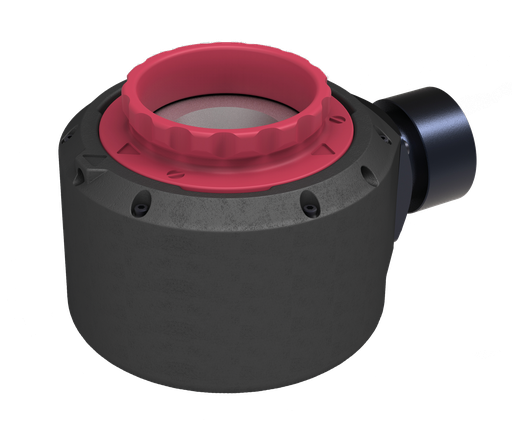

Coil for large tool shank diamaters range from 32mm - 50mm

This optional feature is available only for ISG3410WK & ISG3430TLK4-WS shrink machines.
