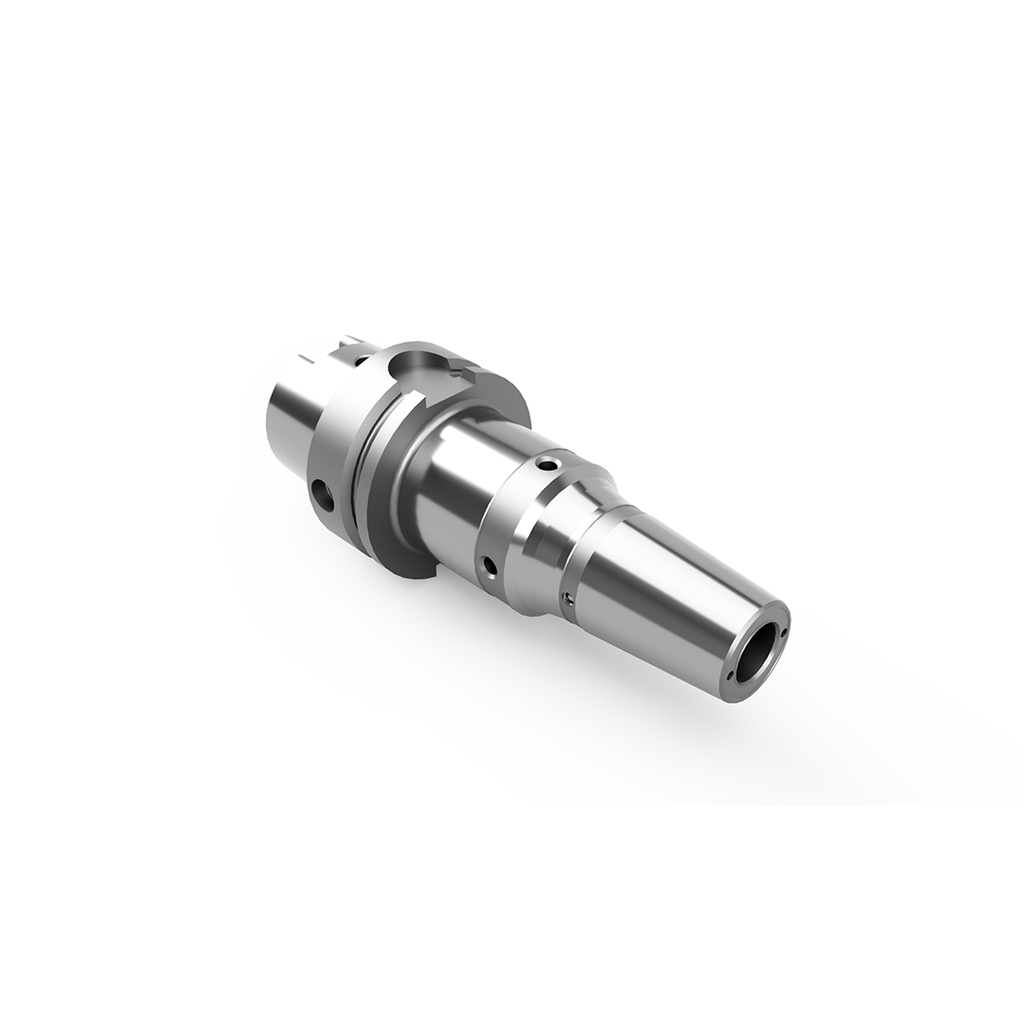

TB1600-200-C1/HSK-A100 - ThermoGrip Bionic Chuck
| Brand: Bilz |
| Taper: HSK-A100 |
| Tool Shank Diameter: 16mm |
| Gauge Length: 200mm |
| Coolant Delivery: Cool Jet |
| Max. RPM: 12,000 |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
| Chip: With data carrier bore |
| HSS: Suitable for HSS shanks diameter 6mm or above |
The ThermoGrip® HSK-A100 shrink fit chuck for 16mm tools with 200mm gauge length is balanced to G2.5 at 25.000 RPM. This precision tool holder provides high clamping forces and excellent concentricity for demanding CNC machining applications.
ThermoGrip® Bionic shrink fit chucks use a bionic design inspired by natural tree structures to maximise strength while minimising material stress. The optimised contour distributes loads evenly across the holder body, significantly improving rigidity and bending strength during heavy machining operations. This design enables higher feed rates, greater cutting depths and improved machining stability.
Features include:
- Maximum bending strength through bionic contour design
- Increased rigidity and vibration resistance
- ThermoGrip® counterbore for precise tool centring
- Excellent run-out accuracy for high-precision machining
- Higher torque transmission and improved chip evacuation
- Cool Jet coolant holes and balance screw holes for fine balancing
Internal Reference:
5180098
