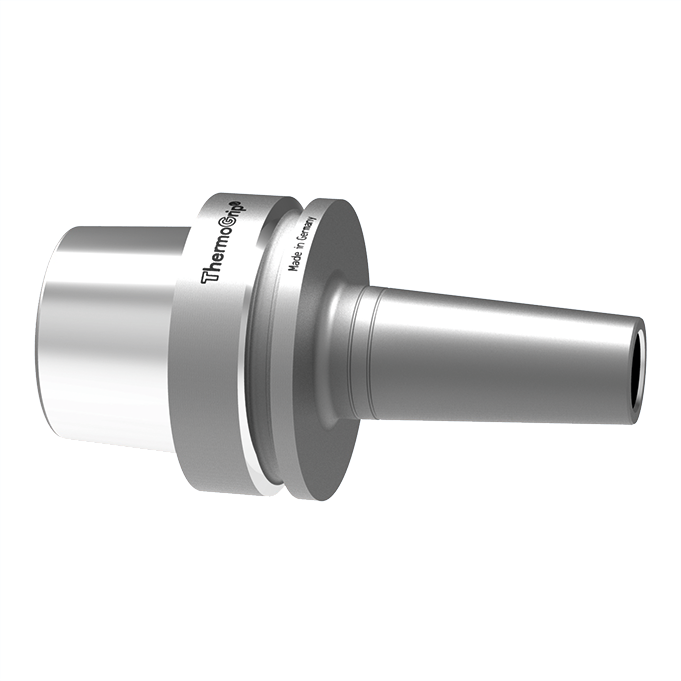

TSF1600-41/HSK-E50 - ThermoGrip Slim Chuck

Brand: Bilz
Tool Shank Diameter: 16mm
Gauge Length: 70mm
Coolant Feed: Internal Feed
Deep Cavities: Suitable
Max. RPM: 36,000
Balance: G2.5 at 25.000 RPM
Coating: Corrosion protected
Runout: 3 µm
Taper: HSK-E50
HSS: Suitable for HSS shanks diameter 6mm or above

Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.

• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design
