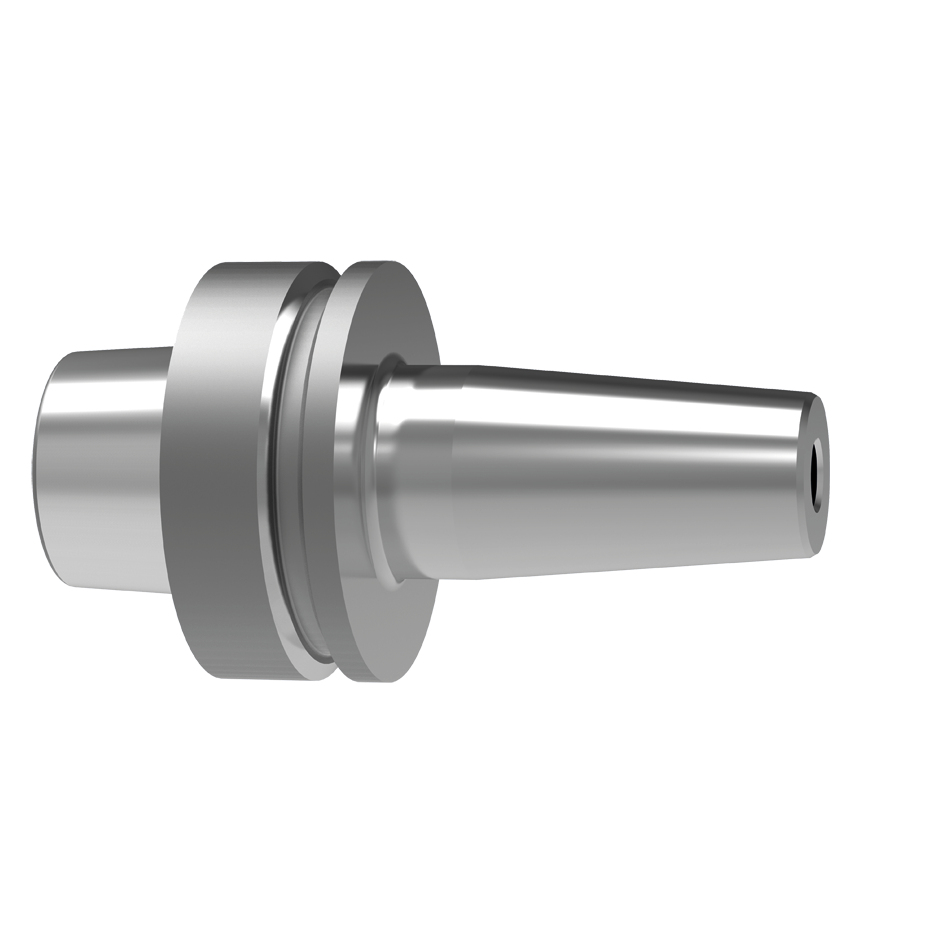

T0600-65/HSK-F40 - ThermoGrip Chuck

Brand: Bilz
Tool Shank Diameter: 6mm
Gauge Length: 65mm
Coolant Feed: Internal Feed
Max. RPM: 50,000
Balance: G2.5 at 25.000 RPM
Runout: 3 µm
Taper: HSK-F40
https://www.bilztool.co.uk/web/image/product.template/14468/image_1920?unique=98899a2

Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.

• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design

Not Available For Sale

  • Brand
  • Tool Shank Diameter
  • Gauge Length
  • Coolant Feed
  • Max. RPM
  • Balance
  • Runout
  • Taper

This combination does not exist.


Internal Reference: 5026620
