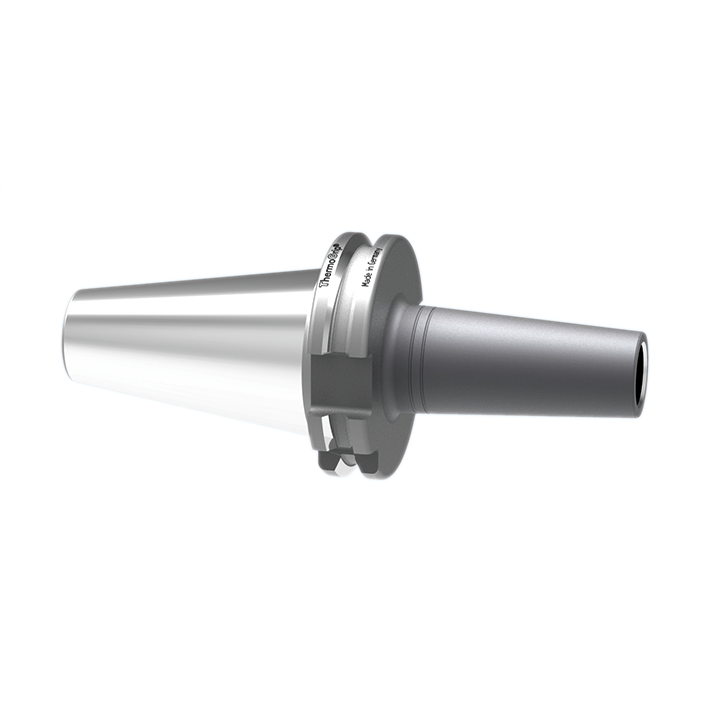

TSF0400-60/AD40 - ThermoGrip Slim Chuck
| Brand: Bilz |
| Taper: AD40 |
| Tool Shank Diameter: 4mm |
| Gauge Length: 83mm |
| Coolant Feed: Central Feed (AD) |
| Deep Cavities: Suitable |
| Max. RPM: 18,000 |
| Balance: G2.5 at 25.000 RPM |
| Coating: Corrosion protected |
| Runout: 3 µm |
Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.
Requires TSF Pole disc.
• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design
Internal Reference:
9101238
