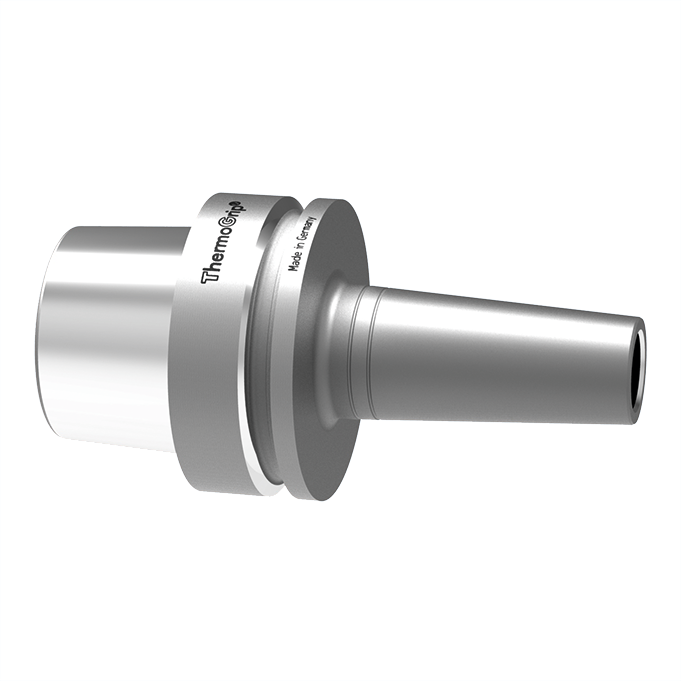

TSF0800-50/HSK-E32 - ThermoGrip Slim Chuck
| Brand: Bilz |
| Taper: HSK-E32 |
| Tool Shank Diameter: 8mm |
| Gauge Length: 74mm |
| Coolant Delivery: Central Through Coolant (AD) |
| Max. RPM: 50,000 |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
| HSS: Suitable for HSS shanks diameter 6mm or above |
The ThermoGrip® HSK-E32 Slim shrink fit chuck for 8mm tools with 74mm gauge length is balanced to G2.5 at 25.000 RPM. This precision tool holder provides high clamping forces and excellent concentricity for demanding CNC machining applications.
The ThermoGrip® slim shrink fit chuck provides secure tool clamping through induction shrinking technology. Designed for high-precision CNC machining, the system delivers excellent concentricity, high rigidity and extremely strong clamping forces. This holder requires a TSF pole disc for use with compatible induction shrink fit machines.
Features include:
- High process reliability for professional machining
- Integrated counterbore for accurate tool centring
- Compatible with standard industrial tool holder interfaces
- Robust design for demanding machining applications
Internal Reference:
9078748
