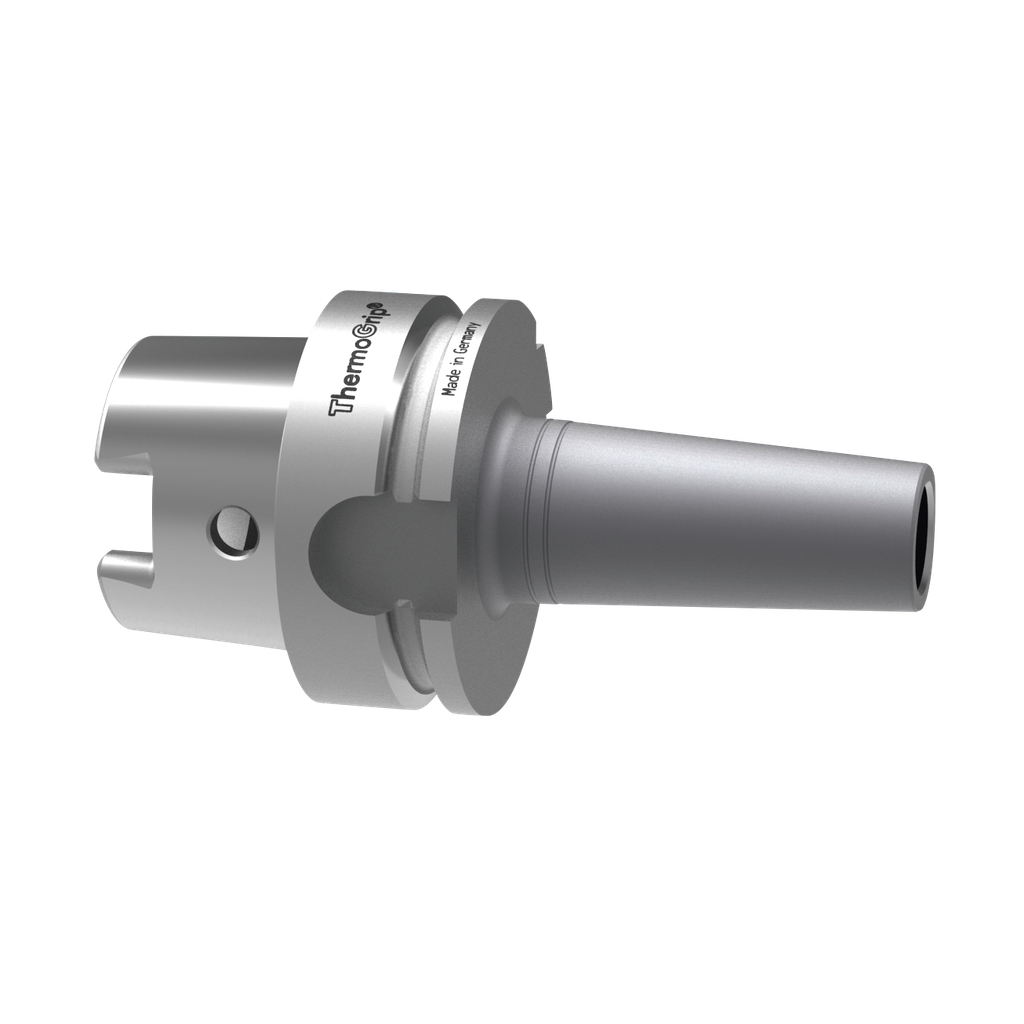

TSF1200-90/HSK-A63 - ThermoGrip Slim Chuck

Brand: Bilz
Tool Shank Diameter: 12mm
Gauge Length: 120mm
Coolant Feed: Internal Feed
Deep Cavities: Suitable
Max. RPM: 24,000
Balance: G2.5 at 25.000 RPM
Coating: Corrosion protected
Runout: 3 µm
Taper: HSK-A63
Chip: With data carrier bore
https://bilztooluk-odoo16.odoo.com/web/image/product.template/15445/image_1920?unique=dd05f93

Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces. Requires TSF Pole disc.

• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design

Not Available For Sale

  • Brand
  • Tool Shank Diameter
  • Gauge Length
  • Coolant Feed
  • Deep Cavities
  • Max. RPM
  • Balance
  • Coating
  • Runout
  • Taper
  • Chip

This combination does not exist.


Internal Reference: 9078726
