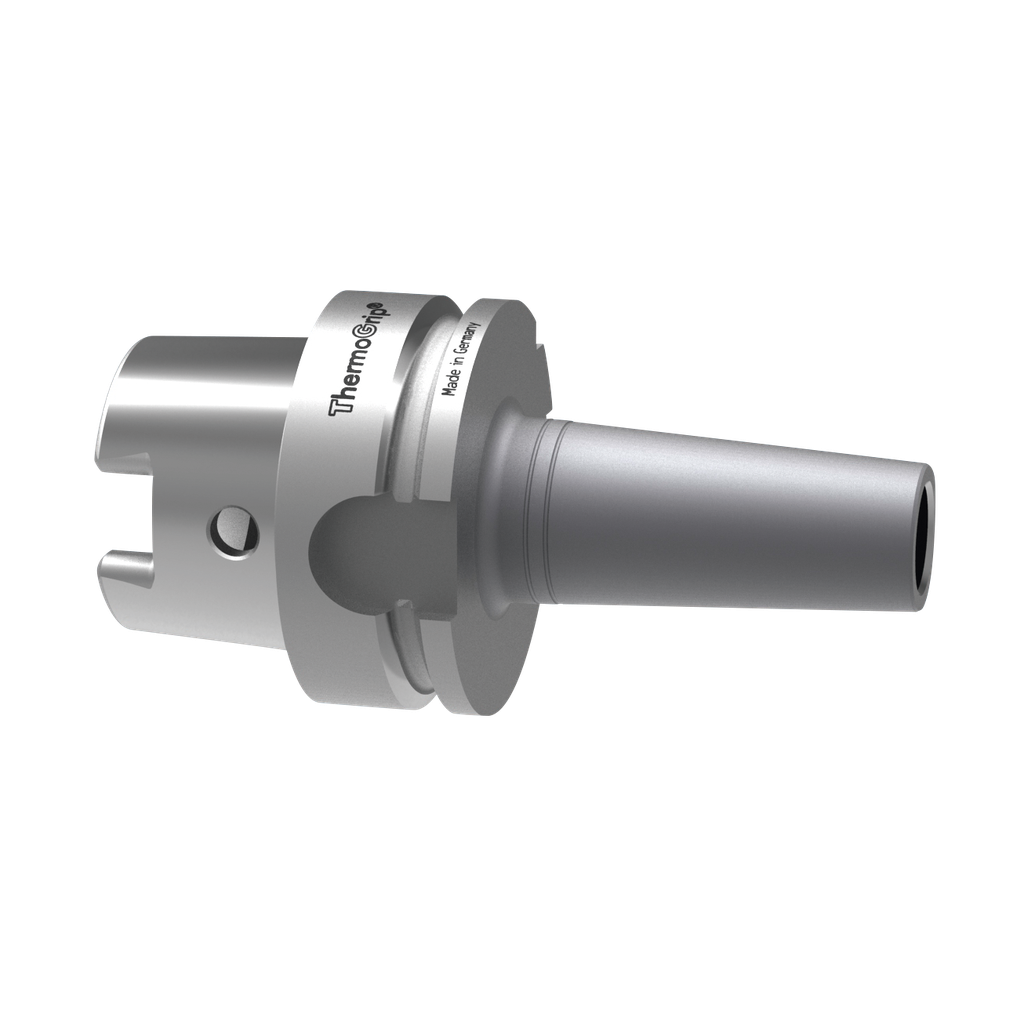

TSF1200-60/HSK-A63 - ThermoGrip Slim Chuck
| Brand: Bilz |
| Taper: HSK-A63 |
| Tool Shank Diameter: 12mm |
| Gauge Length: 90mm |
| Coolant Feed: Central Feed (AD) |
| Deep Cavities: Suitable |
| Max. RPM: 24,000 |
| Balance: G2.5 at 25.000 RPM |
| Coating: Corrosion protected |
| Runout: 3 µm |
| Chip: With data carrier bore |
Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.
Requires TSF Pole disc.
• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design
Internal Reference:
9078725
