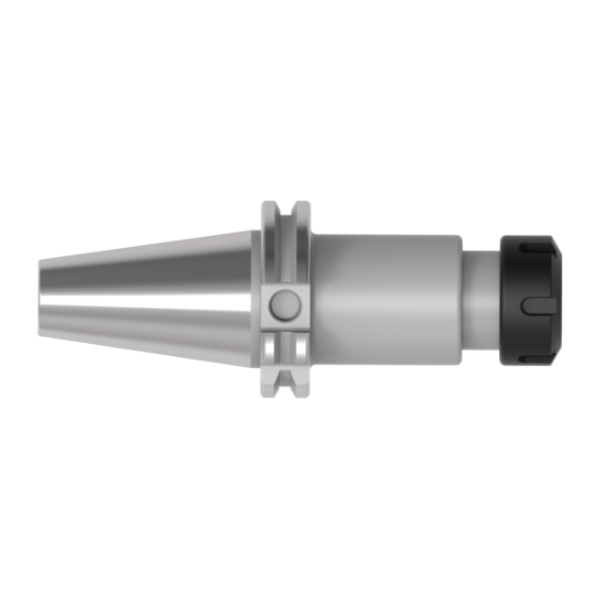

WCCH/ER20-100/BT30 - Collet Chuck
| Brand: Bilz |
| Gauge Length: 100mm |
| Coolant Feed: Central Feed (AD) |
| Concentricity: 3 µm |
| Balance: G2.5 at 25.000 RPM |
| ER Size: ER20 |
| Taper: BT30 |
| DIN: DIN 6499 |
| ISO: ISO 15488 |
| Includes: Clamping Nut (Balanced) and Adjusting Screw |
Achieve high precision and secure tool holding with our premium ER Collet Chucks. Designed for versatility and durability, these chucks ensure optimal performance in milling, drilling, and CNC machining applications. Compatible with a wide range of ER collet sizes (DIN standard), they offer excellent concentricity and vibration resistance for superior machining accuracy.
