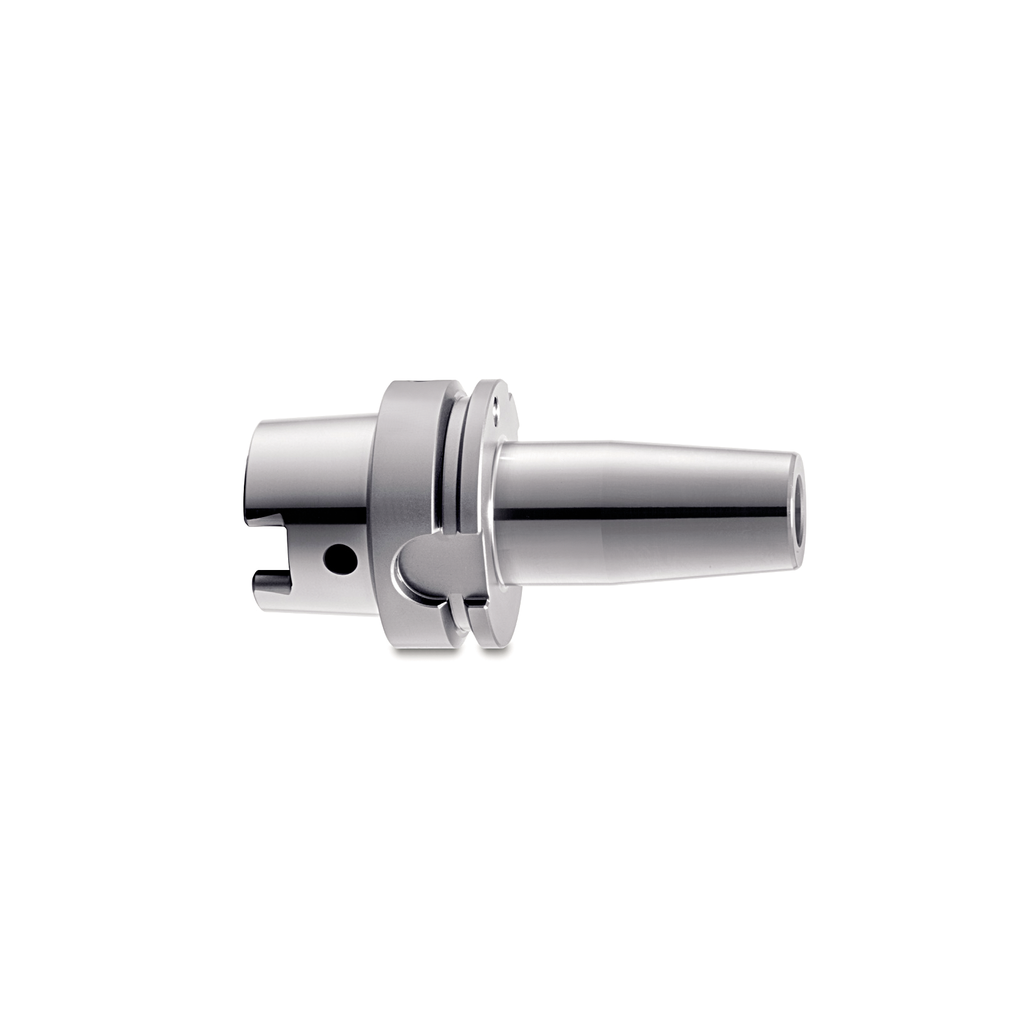

T0800-200-K1/HSK-A100 - ThermoGrip Chuck
| Brand: Bilz |
| Taper: HSK-A100 |
| Tool Shank Diameter: 8mm |
| Gauge Length: 200mm |
| Coolant Delivery: Central Through Coolant (AD) |
| Max. RPM: 12,000 |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
| Chip: With data carrier bore |
| HSS: Suitable for HSS shanks diameter 6mm or above |
The ThermoGrip® HSK-A100 shrink fit chuck for 8mm tools with 200mm gauge length is balanced to G2.5 at 25.000 RPM. This precision tool holder provides high clamping forces and excellent concentricity for demanding CNC machining applications.
The ThermoGrip® shrink fit system ensures secure and precise tool clamping through the perfect combination of shrink fit machine and tool holder. Induction shrinking technology provides exceptional concentricity, high rigidity and extremely strong clamping forces for reliable CNC machining. The result is improved surface quality, longer tool life and higher cutting performance at increased feed rates and spindle speeds.
Features include:
- Maximum process reliability for CNC machining
- Hands-free tool insertion into the cold shrink fit holder
- Integrated counterbore for precise tool centring
- Available in a wide range of geometries and interfaces
- Industrial standard design for professional machining
