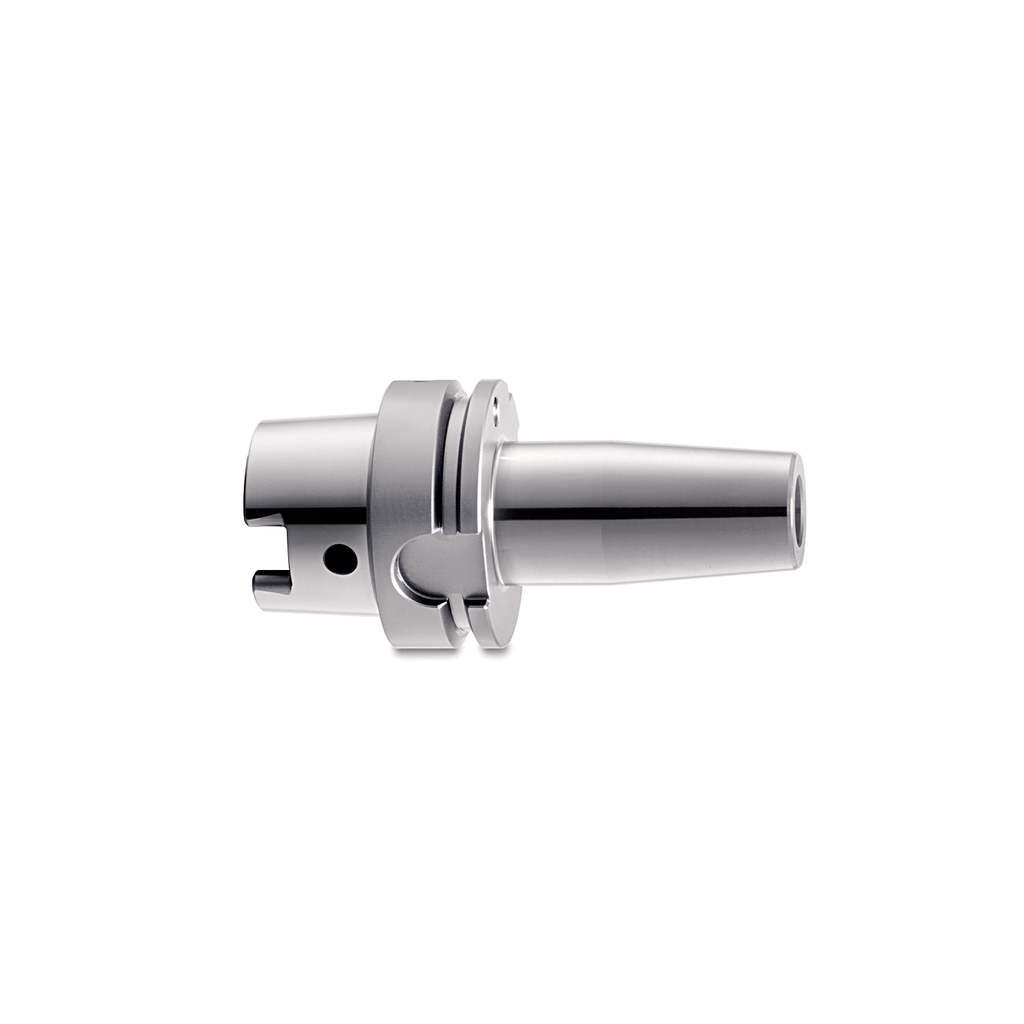

T1400-120/HSK-A100 - ThermoGrip Chuck

Brand: Bilz
Tool Shank Diameter: 14mm
Gauge Length: 120mm
Coolant Feed: Internal Feed
Max. RPM: 12,000
Balance: G2.5 at 25.000 RPM
Runout: 3 µm
Taper: HSK-A100
Chip: With data carrier bore
HSS: Suitable for HSS shanks diameter 6mm or above
https://www.bilztool.co.uk/web/image/product.template/14702/image_1920?unique=c249cca

Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.

• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design
