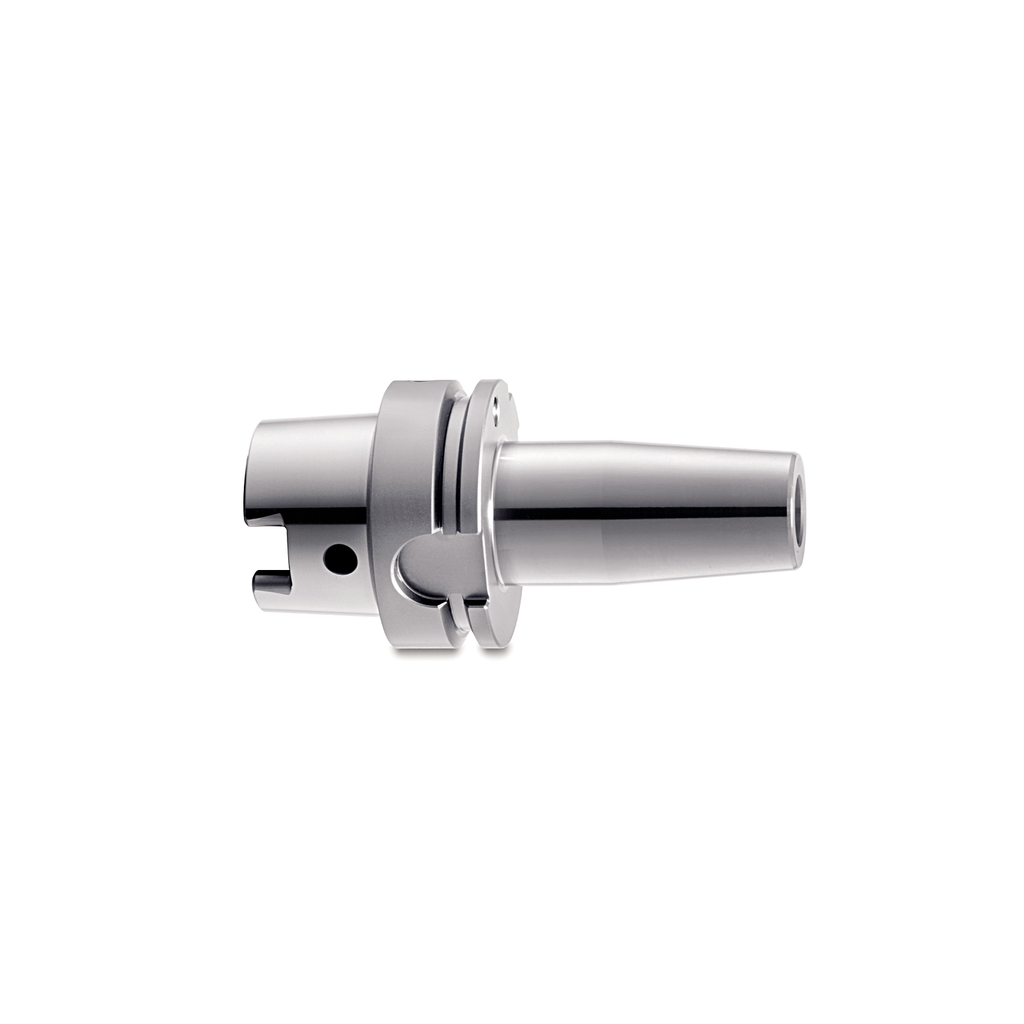

T2500/HSK-A100 - ThermoGrip Chuck
| Brand: Bilz |
| Tool Shank Diameter: 25mm |
| Gauge Length: 115mm |
| Coolant Feed: Internal Feed |
| Max. RPM: 12,000 |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
| Taper: HSK-A100 |
| Chip: With data carrier bore |
| HSS: Suitable for HSS shanks diameter 6mm or above |
Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.
• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design
Internal Reference:
6726350
