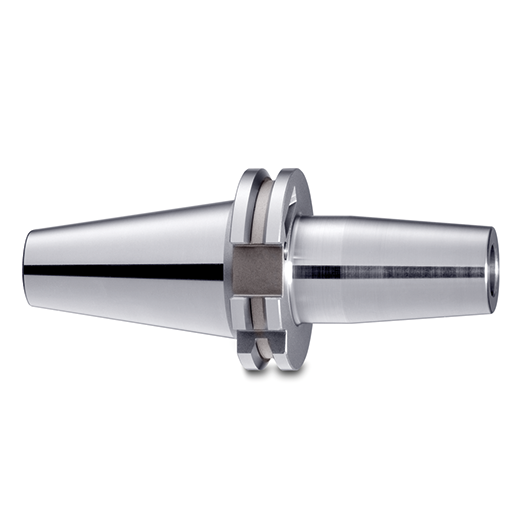

T1400/AD40 - ThermoGrip Chuck

Brand: Bilz
Tool Shank Diameter: 14mm
Gauge Length: 80mm
Coolant Feed: Internal Feed
Max. RPM: 18,000
Balance: G2.5 at 25.000 RPM
Runout: 3 µm
Taper: AD40
HSS: Suitable for HSS shanks diameter 6mm or above
https://www.bilztool.co.uk/web/image/product.template/14687/image_1920?unique=98899a2

Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.

• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design

Not Available For Sale

  • Brand
  • Tool Shank Diameter
  • Gauge Length
  • Coolant Feed
  • Max. RPM
  • Balance
  • Runout
  • Taper
  • HSS

This combination does not exist.


Internal Reference: 6726276
