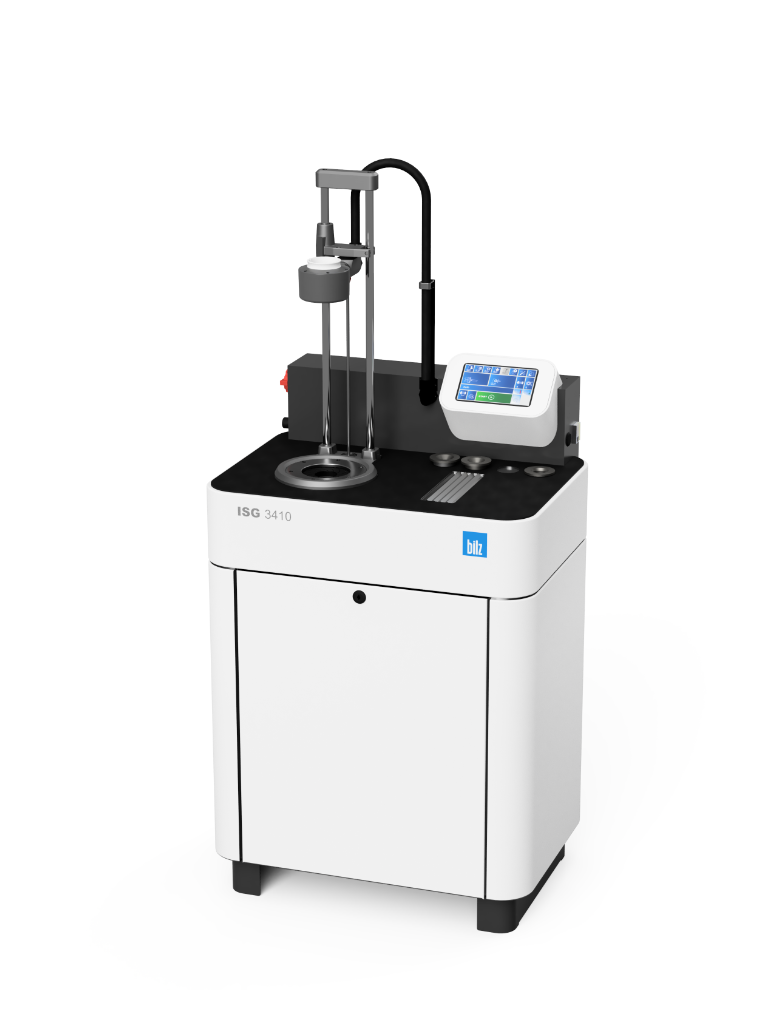

ISG3410WK1-FS-T - Shrink Fit Machine with Touch Display
| Control Panel: Touch screen |
| Clamping Range: 3 - 32mm |
| Max. Tool Length: 400mm @ HSK-A63 |
| Max. Cooling Length: 200mm @ HSK-A63 |
| Cooling Type: Liquid Cooling with Drying, Geometry Independent |
| Cooling Time: 30 sec |
| Power Requirements: 400V / 16A (3 Phase + Neutral + Earth) |
| Power Consumption: 11 kW |
| Dimensions: 800 x 560 x 1720 mm |
| Includes: Protective Gloves, Operation Manual, Coil 1 (3-32mm), 4 Pole Discs, 1000ml of Cooling and Corrosion Protection |
| Does Not Include: Tool Carrier |
The ISG3410WK1-FS series delivers fully automatic shrink fit performance over a broad clamping range from 3 mm to 32 mm, combining high precision with an ergonomic design for straightforward operation. Its liquid cooling and integrated drying system achieve fast, consistent cycle times of around 30 seconds, supporting stable thermal management in continuous use. Designed for medium- to high-volume production, the series minimises manual handling so operators can work efficiently and maintain repeatable process quality.
Key Benefits
• Broad tool clamping range supports versatile production requirements
• Fully automatic operation with an easy-to-use control panel
• Advanced liquid cooling and drying system for consistent, rapid cycles
