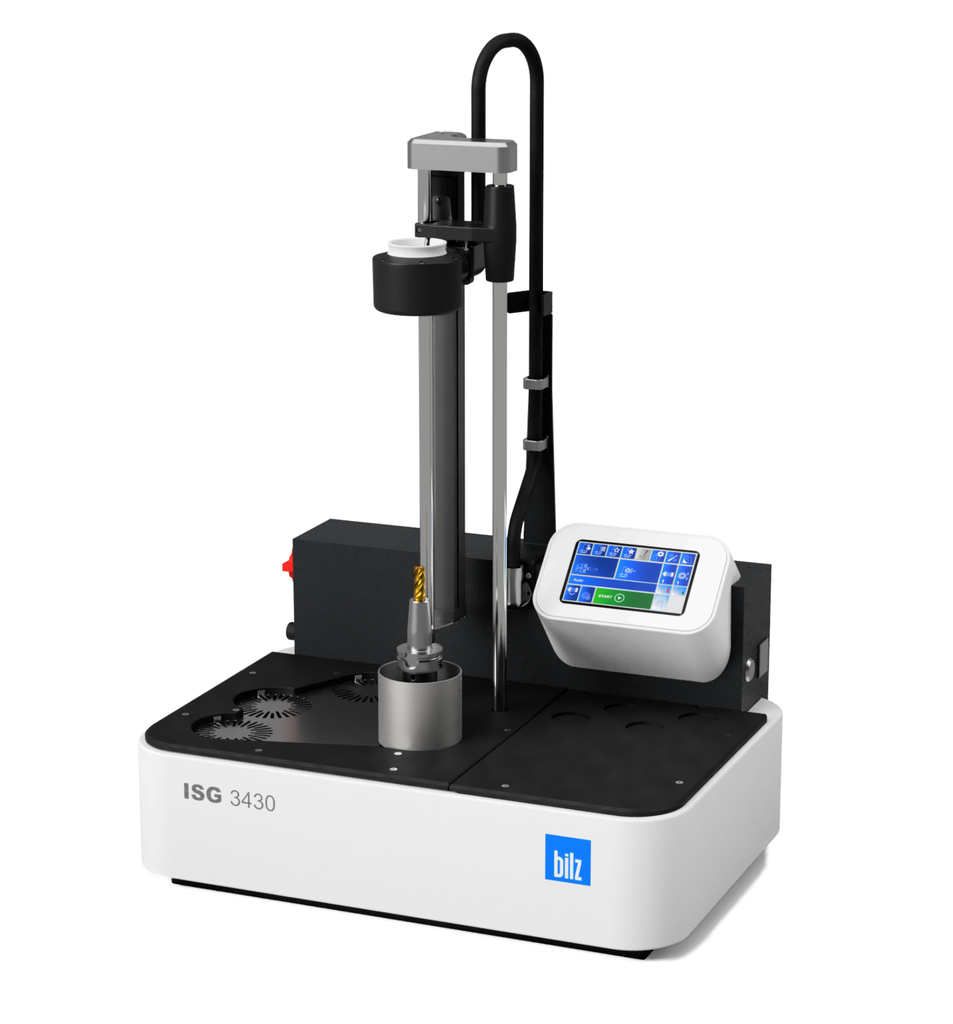

ISG3430TLK4A-11-WS-T-BIL - Semi-Automated Shrink Machine with Touch Display
| Control Panel: Touch screen |
| Clamping Range: 3 - 32mm |
| Max. Tool Length: 400mm @ HSK-A63 (680mm as an option) |
| Max. Cooling Length: 200mm @ HSK-A63 |
| Cooling Type: Air Cooled |
| Cooling Time: 300 sec |
| Power Requirements: 400V / 16A (3 Phase + Neutral + Earth) |
| Power Consumption: 11 kW |
| Dimensions: 800 x 588 x 1018 mm |
| Includes: Protective Gloves, Operation Manual, Coil 1 (3-32mm), 4 Pole Discs |
| Does Not Include: Tool Carrier or Cooling Adapter |
The ISG3430TLK4A model brings together semi-automated shrinking, versatile operation and air cooling options. Designed for tool shanks up to 32 mm, the features an intuitive graphical or touch control interface and semi-automated tooling movement that minimize operator effort and improve process consistency. This machine suits workshops seeking the right balance between hands-on control and streamlined efficiency.
Key Benefits
• Semi-automated operation speeds up cycle times
• User interfaces tailored to operator preference
• Consistent results with reduced operator variability
Internal Reference:
5226925
