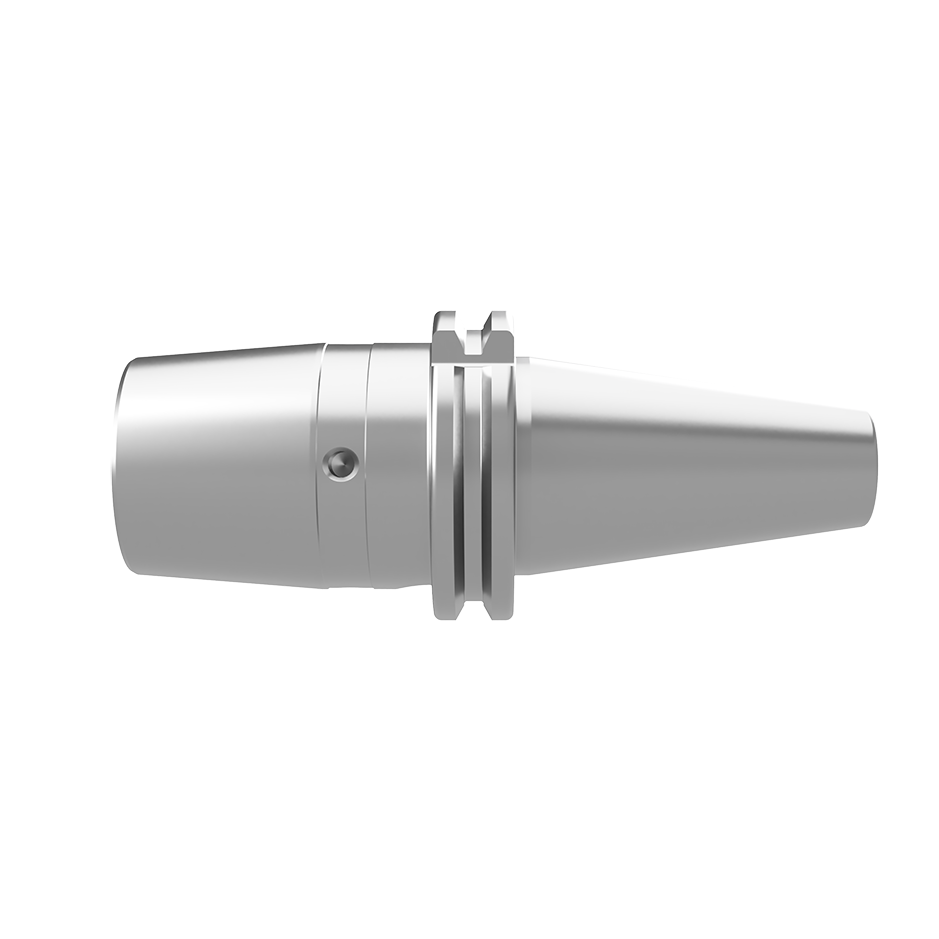

TMG20-80-AD50 - TMG ThermoGrip Chuck

Brand: Bilz
Tool Shank Diameter: 2 - 20mm
Gauge Length: 80mm
Coolant Feed: Collet Dependant
Balance: G2.5 at 25.000 RPM
Runout: 3 µm
Taper: AD50
Chip: With data carrier bore
https://www.bilztool.co.uk/web/image/product.template/78202/image_1920?unique=c249cca

The Bilz TMG clamping system combines the best features of both shrink clamping technology and collet solutions. This innovative system is compatible with a wide range of shank tools (2-32mm) and can achieve impressive clamping forces, such as over 850 Nm for a 20 mm tool shank. The TMG Shrink Chuck's patent-pending process allows for fully automatic or manual operation on induction shrink fit machines, ensuring seamless integration into your existing workshop setup. Benefits of the TMG Shrink Chuck include:

• Increased metal removal rate for improved productivity
• Excellent damping properties, resulting in better surface quality and more precise tolerances
• One basic holder capable of accommodating all tool diameters, simplifying your workflow and reducing costs
