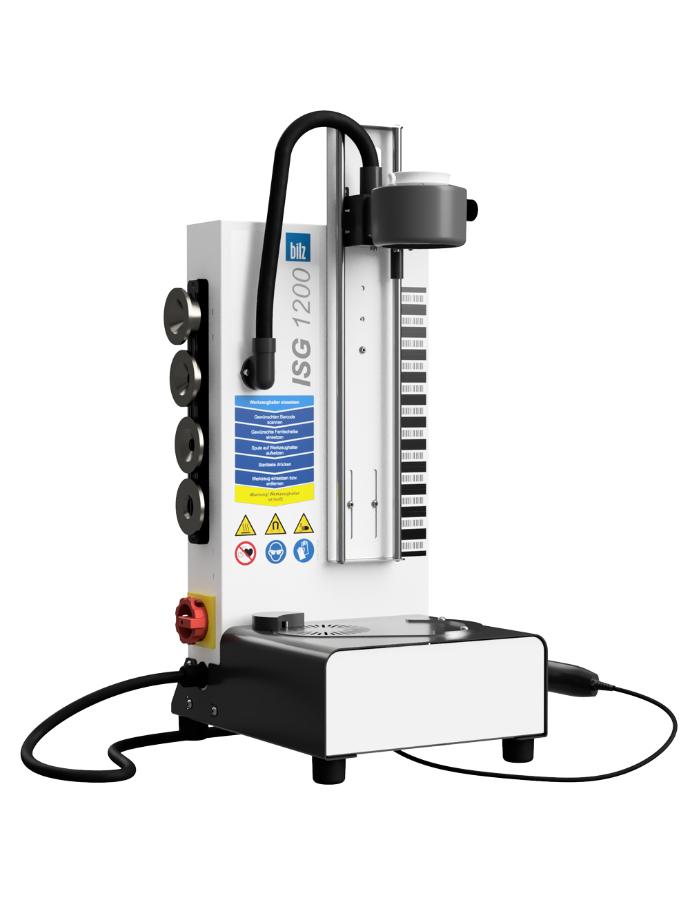

ISG1200TLK - Shrink Fit Machine with Smart Scanner
| Clamping Range: 3 - 32mm |
| Max. Tool Length: 450mm @ HSK-A63 |
| Max. Cooling Length: 200mm @ HSK-A63 |
| Cooling Type: Air Cooled |
| Power Requirements: 400V / 16A (3 Phase + Neutral + Earth) |
| Power Consumption: 6.5 kW |
| Dimensions: 390 x 310 x 640 mm |
| Includes: Protective Gloves, Operation Manual, Coil 1 (3-32mm), 4 Pole Discs, 14 magnetic strips and a barcode scanner |
| Does Not Include: Tool Carrier or Cooling Adapter |
The ISG1200TLK is an entry-level shrink fit machine that builds on the ISG1000 with greater flexibility and automation-ready features. It expands the clamping range from 3 mm to 32 mm and adds an integrated barcode and QR smart scanner to support accurate, traceable setups across a wide variety of tools. Its sturdy tabletop design and air-cooled system handle tool lengths up to 450 mm from the taper (HSK-A63), making it well suited to workshops that need quick changeovers without moving to a fully automatic system. Like the ISG1000, it remains easy to operate and can be combined with the CC1200 or LC1200 cooler for improved heat management and a smoother overall workflow.
Key Benefits
• Smart scanning for tool identification & traceability
• Wider clamping range for versatile tooling
• Manual table operation with advanced setup support
