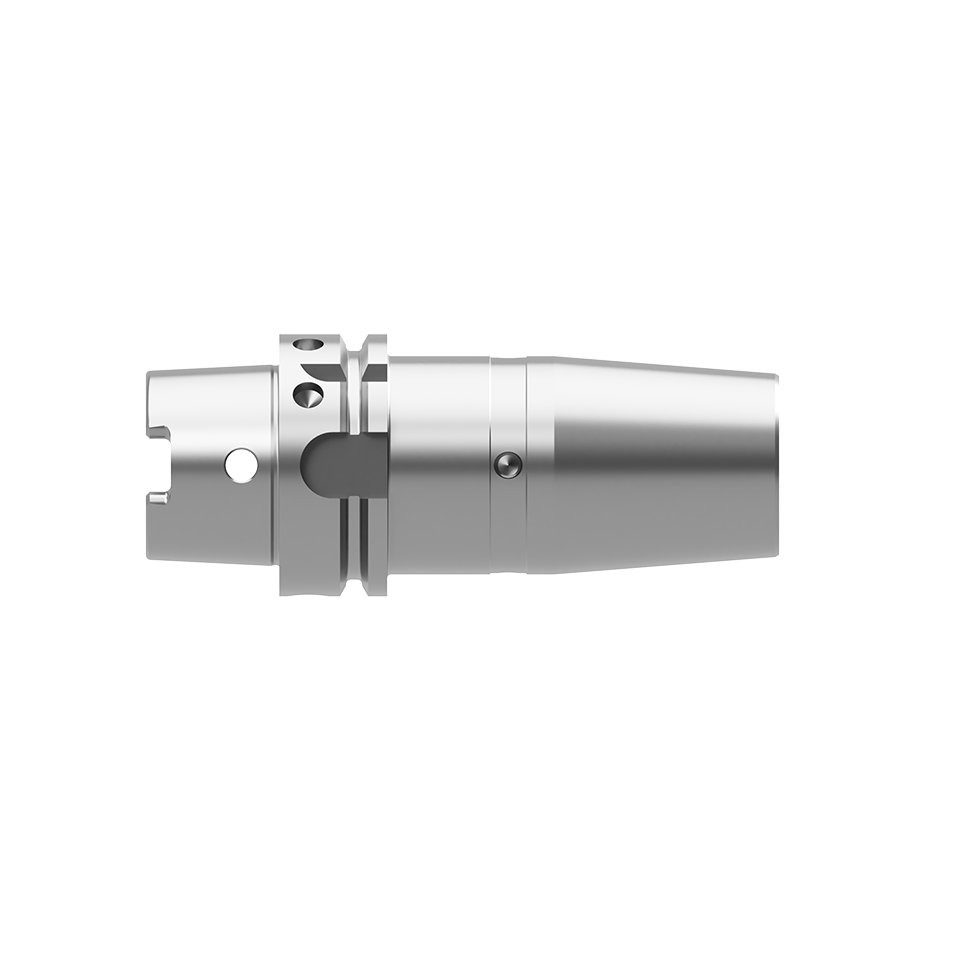

TMG20-120-HSK-A100 - TMG ThermoGrip Chuck

Brand: Bilz
Tool Shank Diameter: 2 - 20mm
Gauge Length: 120mm
Coolant Feed: Collet Dependant
Balance: G2.5 at 25.000 RPM
Runout: 3 µm
Taper: HSK-A100
Chip: With data carrier bore
https://www.bilztool.co.uk/web/image/product.template/15314/image_1920?unique=c249cca

The Bilz TMG clamping system combines the best features of both shrink clamping technology and collet solutions. This innovative system is compatible with a wide range of shank tools (2-32mm) and can achieve impressive clamping forces, such as over 850 Nm for a 20 mm tool shank. The patented TMG Shrink Chuck allows for fully automatic or manual operation on induction shrink fit machines, ensuring seamless integration into your existing workshop setup. Benefits of the TMG Shrink Chuck include:

• Increased metal removal rate for improved productivity
• Excellent damping properties, resulting in better surface quality and more precise tolerances
• One basic holder capable of accommodating all tool diameters, simplifying your workflow and reducing costs

Not Available For Sale

  • Brand
  • Tool Shank Diameter
  • Gauge Length
  • Coolant Feed
  • Balance
  • Runout
  • Taper
  • Chip

This combination does not exist.


Internal Reference: 5195743
