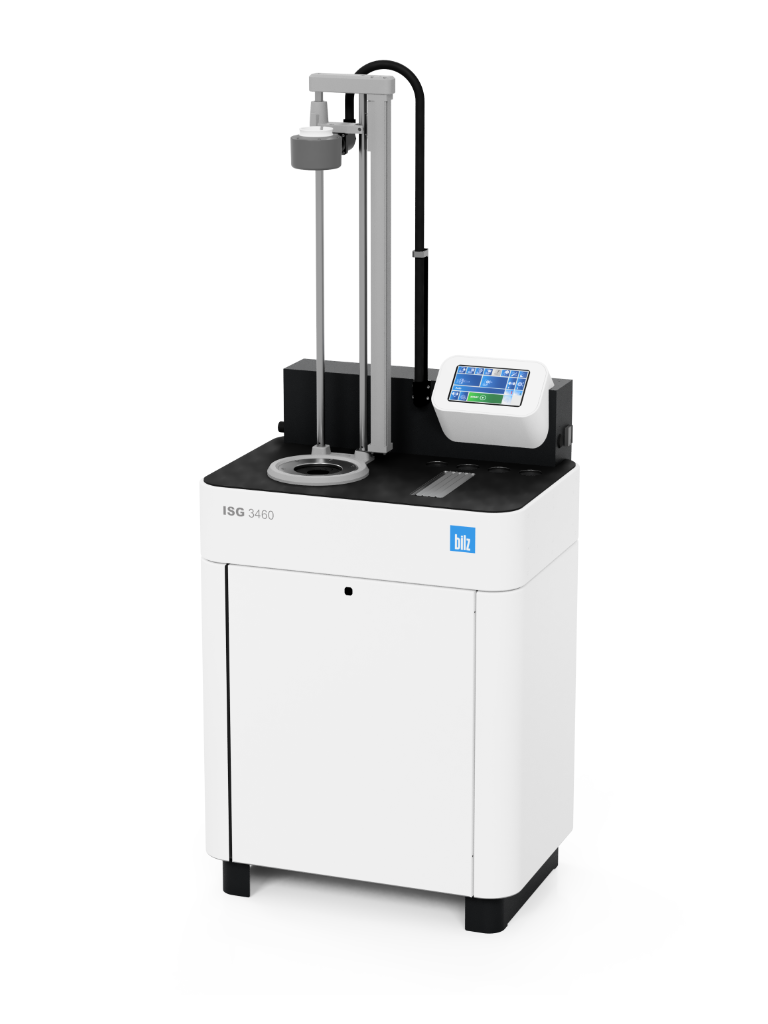

ISG3460WK4-WS-T - Shrink Fit Machine with Touch Display
| Brand: Bilz |
| Control Panel: Touch screen |
| Clamping Range: 3 - 50mm |
| Max. Tool Length: 350mm @ HSK-A63 / SK40 |
| Max. Cooling Length: 350mm @ HSK-A63 |
| Cooling Type: Liquid Cooling with Drying, Geometry Independent |
| Cooling Time: 20 sec |
| Power Requirements: 400V / 16A (3 Phase + Neutral + Earth) |
| Power Consumption: 11 kW |
| Dimensions: 800 x 560 x 1950 mm |
| Weight: 154kg |
| Includes: Protective Gloves, Operation Manual, Coil 1 (3-32mm), 4 Pole Discs, 1000ml of Cooling and Corrosion Protection |
| Does Not Include: Tool Carrier |
The ISG3460WK4 is a fully automatic shrink fit machine optimised for TMG and TEX shrink holders, with a wide clamping range from 3 mm to 50 mm and extended tool lengths up to 350 mm at HSK-A63 or SK40. It features liquid cooling with integrated drying and a touch display to deliver rapid cycles of around 20 seconds, while hands-free operation supports a high level of operator safety. This model is suited to professional environments that require precise, repeatable shrinking, stable performance and efficient throughput across diverse tooling requirements.
This model features quick-change coil system, designed for workshops that switch between tool sizes regularly.
Key Benefits
• TMG/TEX ready (with optional adaptor) for specialised holder compatibility
• Rapid 20-second cycles that support fast, continuous workflows
• Touch display and hands-free safety enhance daily usability
Internal Reference:
5193799
