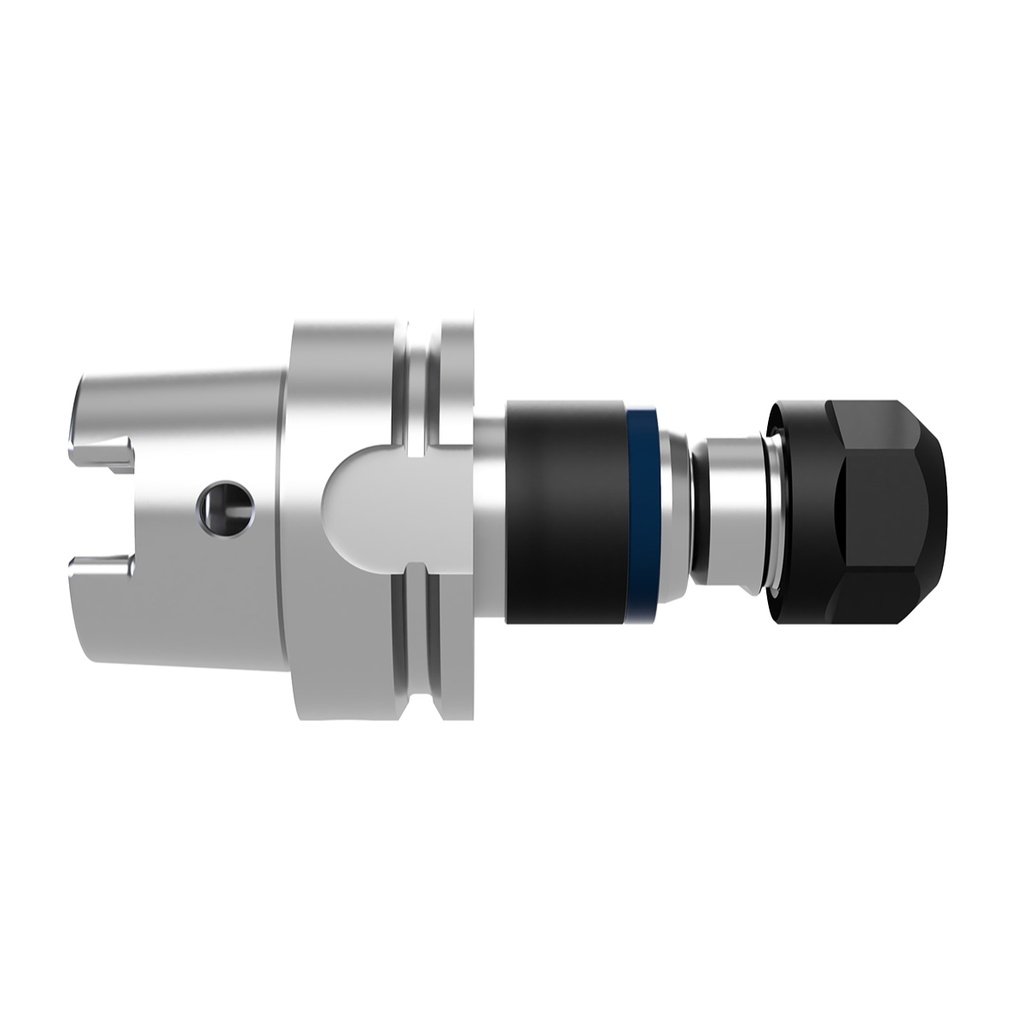

S3D2-ER32-115.5-K1-HSK-A100 - Synchro Chuck (M8 - M20)
Brand: Bilz |
Gauge Length: 115.5mm |
ER Size: ER32 |
Taper: HSK-A100 |
Does Not Include: Coolant Pipe, Coolant Pipe Wrench or Length Adjustment Key |
The S3D Synchro Chuck from Bilz is a cutting-edge, synchronized rotary index chuck designed for use in 5-axis machining applications. This innovative tooling solution provides unparalleled accuracy and efficiency, enabling machinists to produce complex parts with precision and speed.
Features:
• Minimum length compensation in compression and tension direction.
• Ball bearing mounted (i.e. torque independent) suspension.
• Suitable for internal coolant supply up to 80 bar.
• Suitable for taps and thread formers.
• Suitable for right-hand and left-hand threads.
• Optimized spring-damper technology (± 0.5mm).
• 3D Synchro completely encapsulated function chamber (washable up to 80°C).
• Optimized seal (comparable to IP68).
Internal Reference:
5190624
