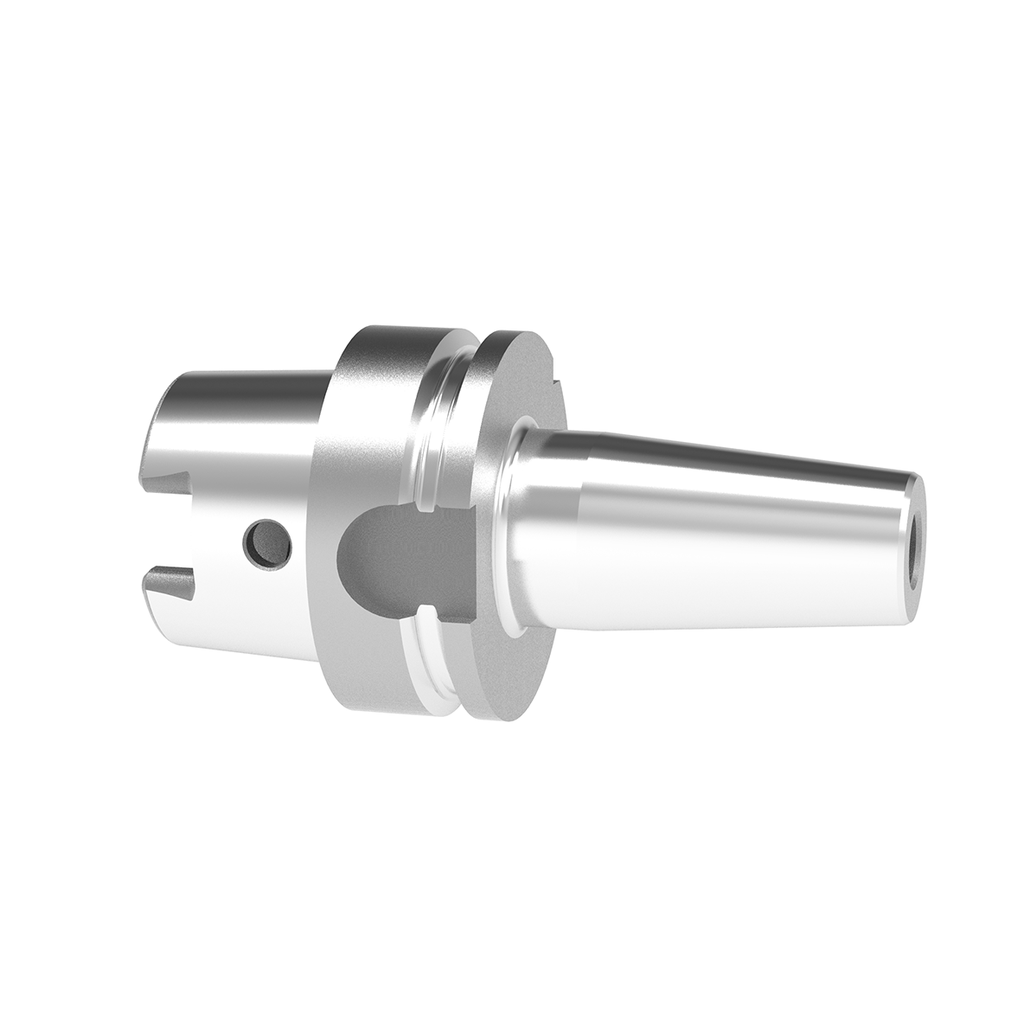

T2000-100-C4/HSK-A63 - ThermoGrip Corona Jet Chuck
| Brand: Bilz |
| Taper: HSK-A63 |
| Tool Shank Diameter: 20mm |
| Gauge Length: 100mm |
| Coolant Delivery: Corona Jet 2.0 |
| Max. RPM: 24,000 |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
| Chip: With data carrier bore |
| HSS: Suitable for HSS shanks diameter 6mm or above |
The ThermoGrip® HSK-A63 shrink fit chuck for 20mm tools with 100mm gauge length is balanced to G2.5 at 25.000 RPM. This precision tool holder provides high clamping forces and excellent concentricity for demanding CNC machining applications.
ThermoGrip® CoronaJet shrink fit chucks provide advanced coolant delivery for demanding machining applications. The system directs coolant precisely to the cutting edge while reducing centrifugal coolant loss compared with conventional tool holder designs. Ideal for general engineering, aerospace machining and mould & die applications, particularly when machining deep cavities.
Features include:
- Precise and consistent coolant supply to the cutting zone
- Improved chip evacuation and process stability
- Extended tool life due to controlled cutting temperatures
- Higher machining accuracy and improved surface quality
