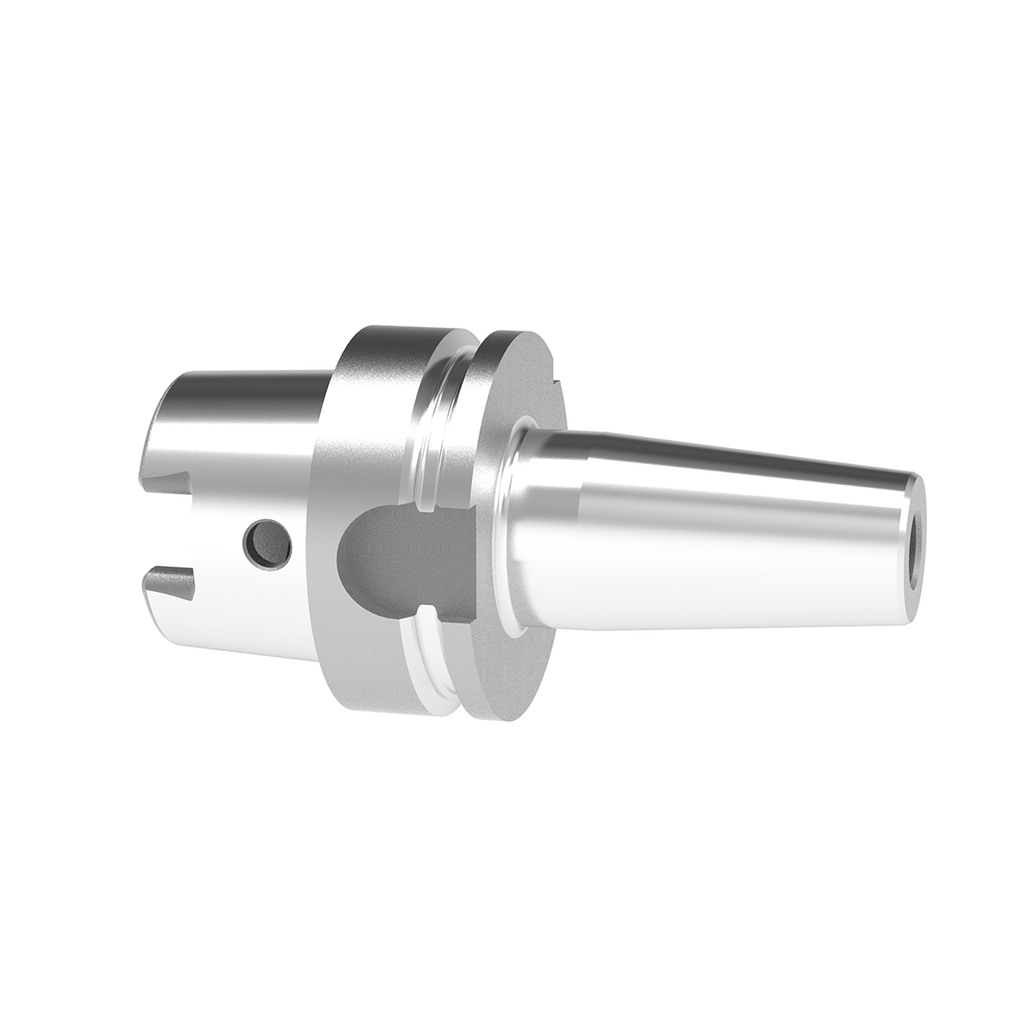

T1200-90-C4-HSK-A63 - ThermoGrip Corona Jet Chuck
| Brand: Bilz |
| Tool Shank Diameter: 12mm |
| Gauge Length: 90mm |
| Coolant Feed: Corona Feed |
| Max. RPM: 24,000 |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
| Taper: HSK-A63 |
| Chip: With data carrier bore |
| HSS: Suitable for HSS shanks diameter 6mm or above |
ThermoGrip® CoronaJet is an ideal coolant supply feature bringing best swarf evacuation to all cutting applications. Allows optimised cooling control to the cutting edge with minimum centrifugal coolant displacement away from the cutting edge compared to conventional coolant supply systems.
Perfect for general engineering application to high-tech aerospace and mold & die, especially suited to deep cavities.
• Targeted and consistent coolant supply
• Longer tool life due to the constant cutting temperatures
• Better product quality
Internal Reference:
5188360
