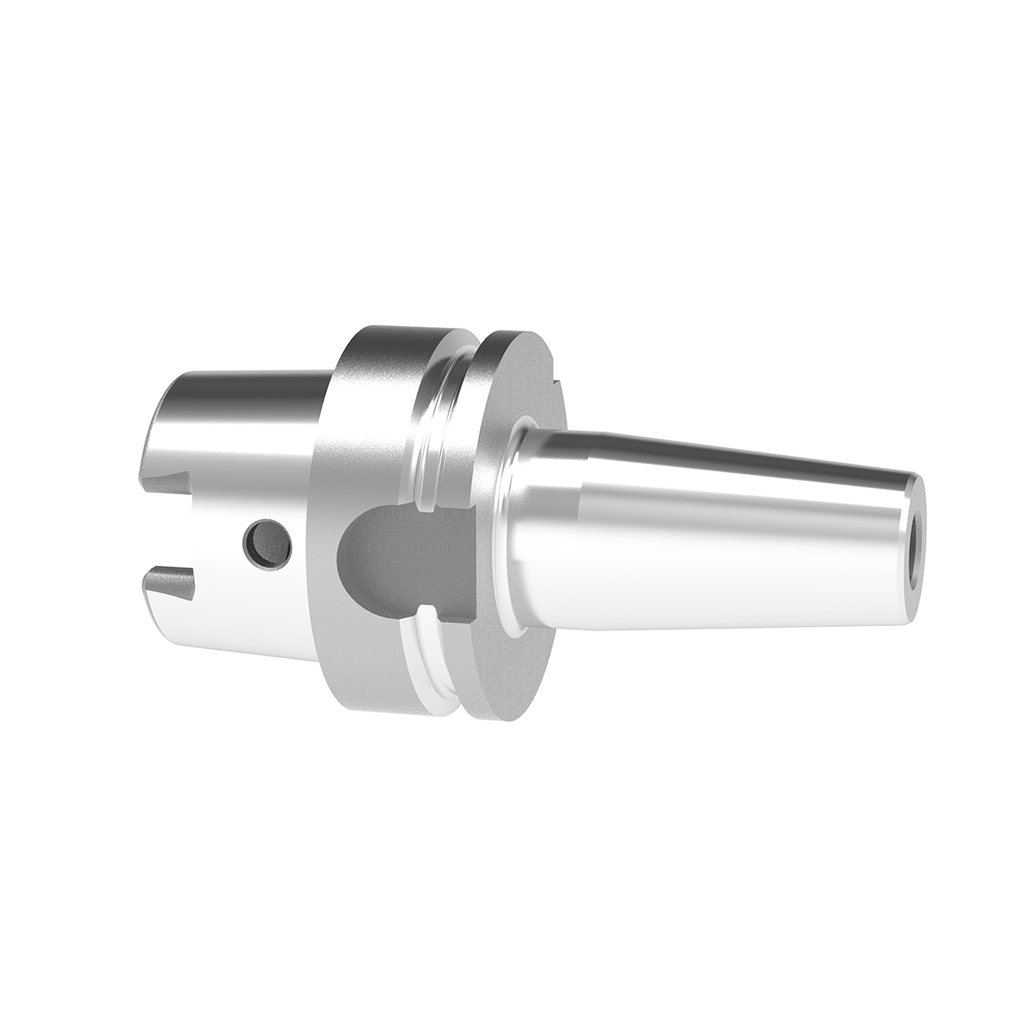

T1000-85-C4-HSK-A63 - ThermoGrip Corona Jet Chuck

Brand: Bilz
Tool Shank Diameter: 10mm
Gauge Length: 85mm
Coolant Feed: Corona Feed
Max. RPM: 24,000
Balance: G2.5 at 25.000 RPM
Runout: 3 µm
Taper: HSK-A63
Chip: With data carrier bore
HSS: Suitable for HSS shanks diameter 6mm or above
https://bilztooluk-odoo16.odoo.com/web/image/product.template/14608/image_1920?unique=dd05f93

ThermoGrip® CoronaJet is an ideal coolant supply feature bringing best swarf evacuation to all cutting applications. Allows optimised cooling control to the cutting edge with minimum centrifugal coolant displacement away from the cutting edge compared to conventional coolant supply systems. Perfect for general engineering application to high-tech aerospace and mold & die, especially suited to deep cavities.

• Targeted and consistent coolant supply
• Longer tool life due to the constant cutting temperatures
• Better product quality
