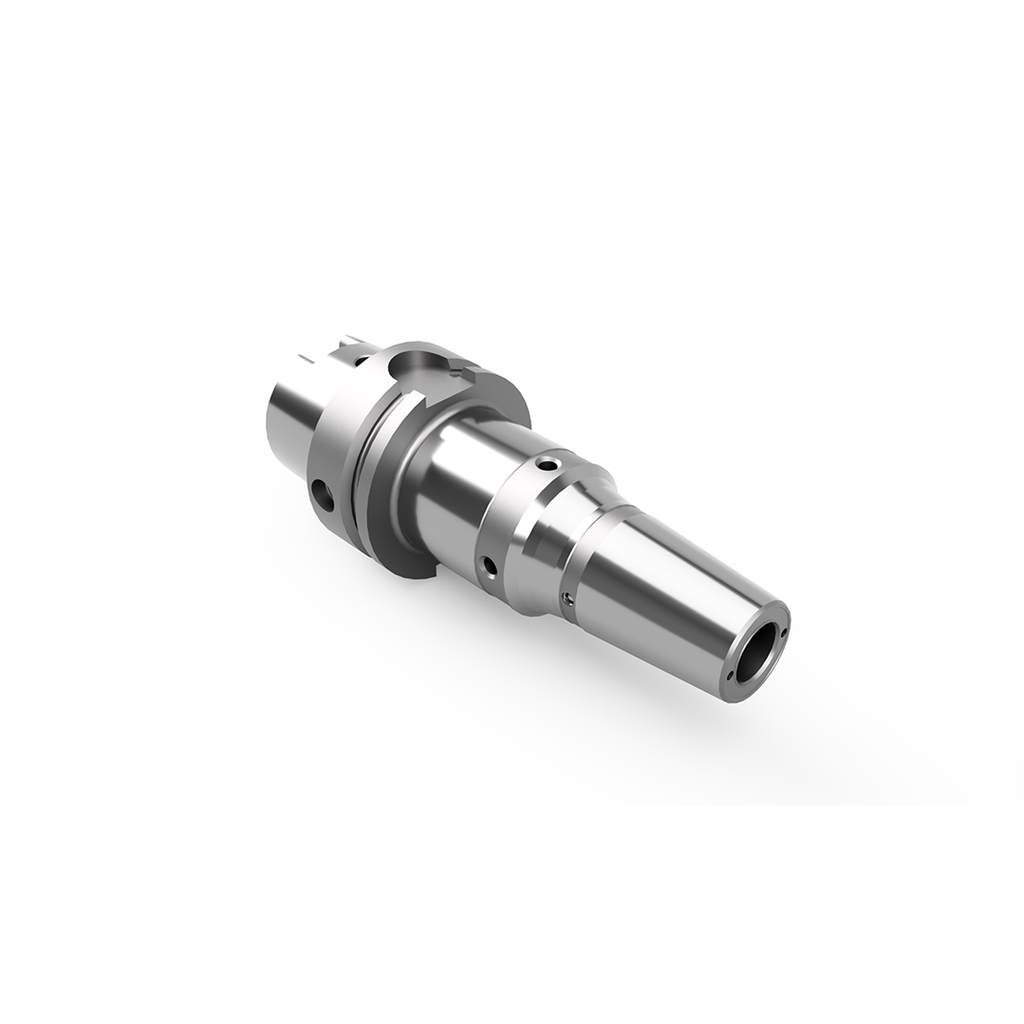

TB1200-200-C1-HSK-A100 - ThermoGrip T-Bionic Chuck
| Brand: Bilz |
| Tool Shank Diameter: 12mm |
| Gauge Length: 200mm |
| Coolant Feed: Side Feed |
| Max. RPM: 12,000 |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
| Taper: HSK-A100 |
| Chip: With data carrier bore |
| HSS: Suitable for HSS shanks diameter 6mm or above |
Form optimisation leads to an increase in the life and load capacity of the holder through a uniform structure throughout. The bearing structure of our ThermoGrip® Bionic shrink chucks has been designed based on the growth form of trees, meaning that notch stress is avoided and only as much material is used as is required. A tree is stabilised on the windward side by means of its root system, and exactly this method has been used by our engineers to develop an exceptional shrink chuck with extremely high bending strength.
• Maximum bending strength due to the bionic contour
• Increased rigidity
• Counterbore – the Thermogrip® trademark
• Improved surface quality due to optimal chip removal
• Run-out quality • Higher feed rates and greater cutting depth
• Increased torque transmission
• Lockable Cool Jet holes for peripheral cooling and balance screw holes for fine balancing as standard
Internal Reference:
5180096
