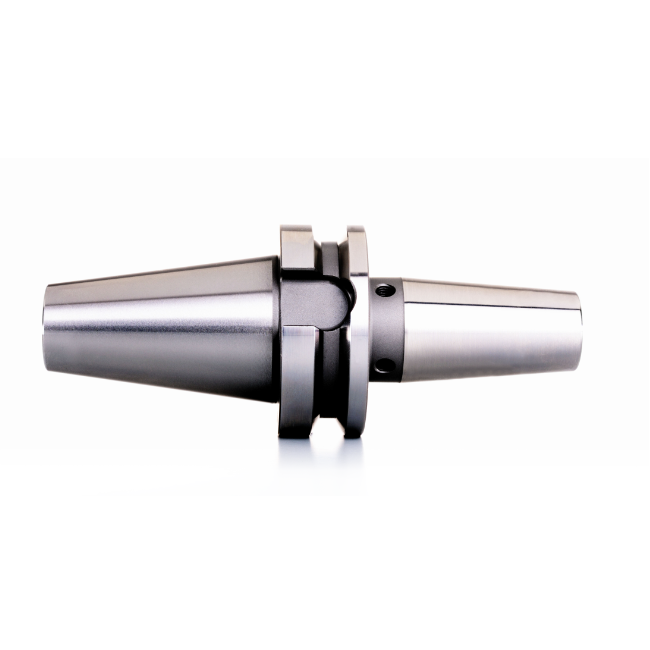

M0600-160-C1/FBT50 - ThermoGrip Cool Jet Chuck Dual Contact
| Brand: Bilz |
| Taper: FBT50 |
| Tool Shank Diameter: 6mm |
| Gauge Length: 160mm |
| Coolant Delivery: Cool Jet |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
The ThermoGrip® FBT50 dual contact shrink fit chuck for 6mm tools with 160mm gauge length is balanced to G2.5 at 25.000 RPM. This precision tool holder provides high clamping forces and excellent concentricity for demanding CNC machining applications.
ThermoGrip® Cool Jet shrink fit chucks provide optimised coolant supply through closable side channels, delivering targeted cooling directly to the cutting edge during CNC machining. This improves chip evacuation, stabilises cutting temperatures and extends tool life in demanding milling applications.
Features include:
- Targeted cooling directly at the cutting edge
- Optimised lubricant supply
- Longer tool life due to stable cutting temperatures
- Improved surface finish through efficient chip evacuation
- Reliable performance during tool shrinking and insertion
Internal Reference:
5170790
