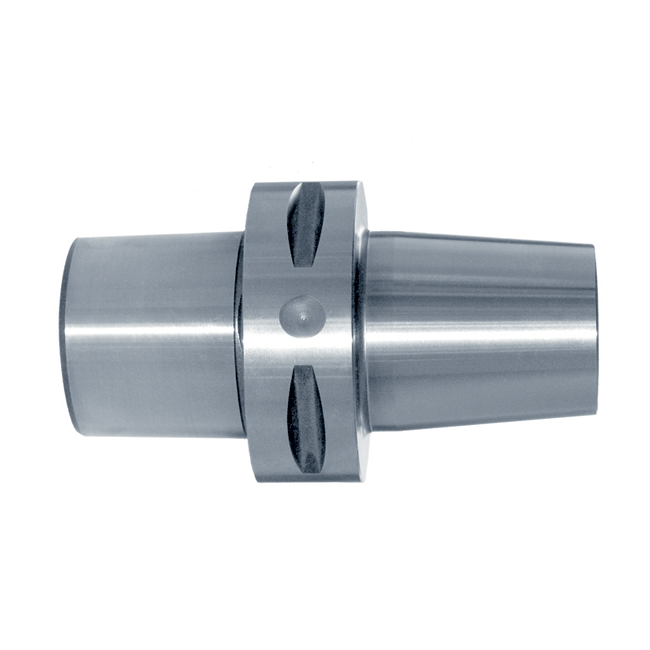

S1200-75/PSC40 - ThermoGrip Chuck
| Brand: Bilz |
| Tool Shank Diameter: 12mm |
| Gauge Length: 75mm |
| Coolant Feed: Internal Feed |
| Balance: G2.5 at 25.000 RPM |
| Runout: 3 µm |
| Taper: PSC40 |
Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.
• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design
Internal Reference:
5164527
