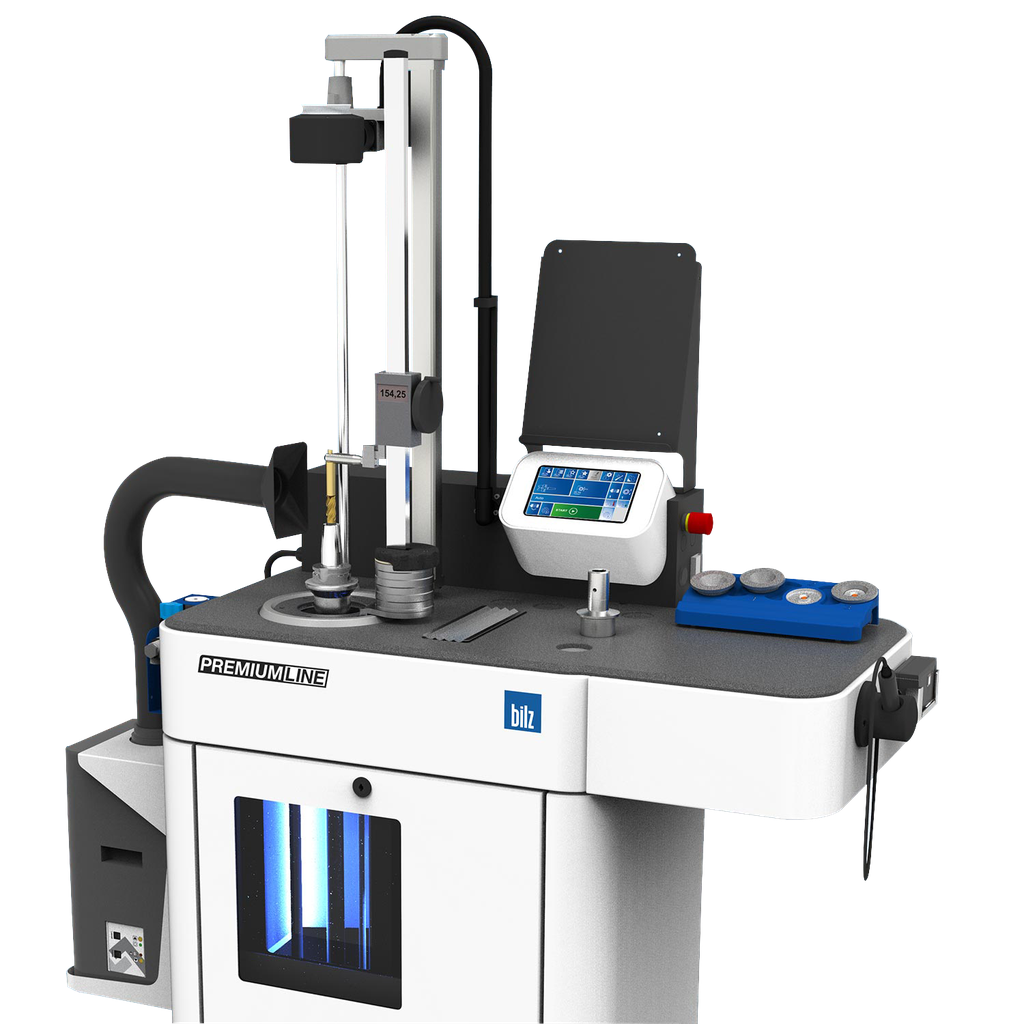

Premiumline - Top Tier Shrink Fit Machine with Touch Display
| Control Panel: Touch screen |
| Clamping Range: 3 - 50mm |
| Max. Tool Length: 680mm @ HSK-A63 |
| Max. Cooling Length: 400mm @ HSK-A63 |
| Cooling Type: Liquid Cooling with Drying, Geometry Independent |
| Cooling Time: 20 sec |
| Power Requirements: 400V / 16A (3 Phase + Neutral + Earth) |
| Power Consumption: 11 kW |
| Dimensions: 1140 x 560 x 1950 mm |
| Includes: Protective Gloves, Operation Manual, Coil 1 (3-32mm), 4 Pole Discs, 1000ml of Cooling and Corrosion Protection |
| Does Not Include: Tool Carrier or Cooling Adapter |
The Premiumline series represents the pinnacle of the ThermoGrip® family, offering fully automatic induction shrink fitting with integrated liquid cooling, drying, and a modern touch-screen interface. Engineered for the most demanding production environments, it handles large-diameter holders up to 50 mm and tool lengths up to 680 mm, delivering exceptional speed, precision, and consistency in every cycle. Its advanced process control and superior thermal management make it ideal for workshops prioritising maximum throughput, effortless operation, and unmatched accuracy.
Key Benefits
• Fully automated process with high-performance liquid cooling and drying
• Modern touch interface for intuitive, efficient operation
• Handles heavy-duty holders up to 50 mm and 680 mm lengths for high-volume production
