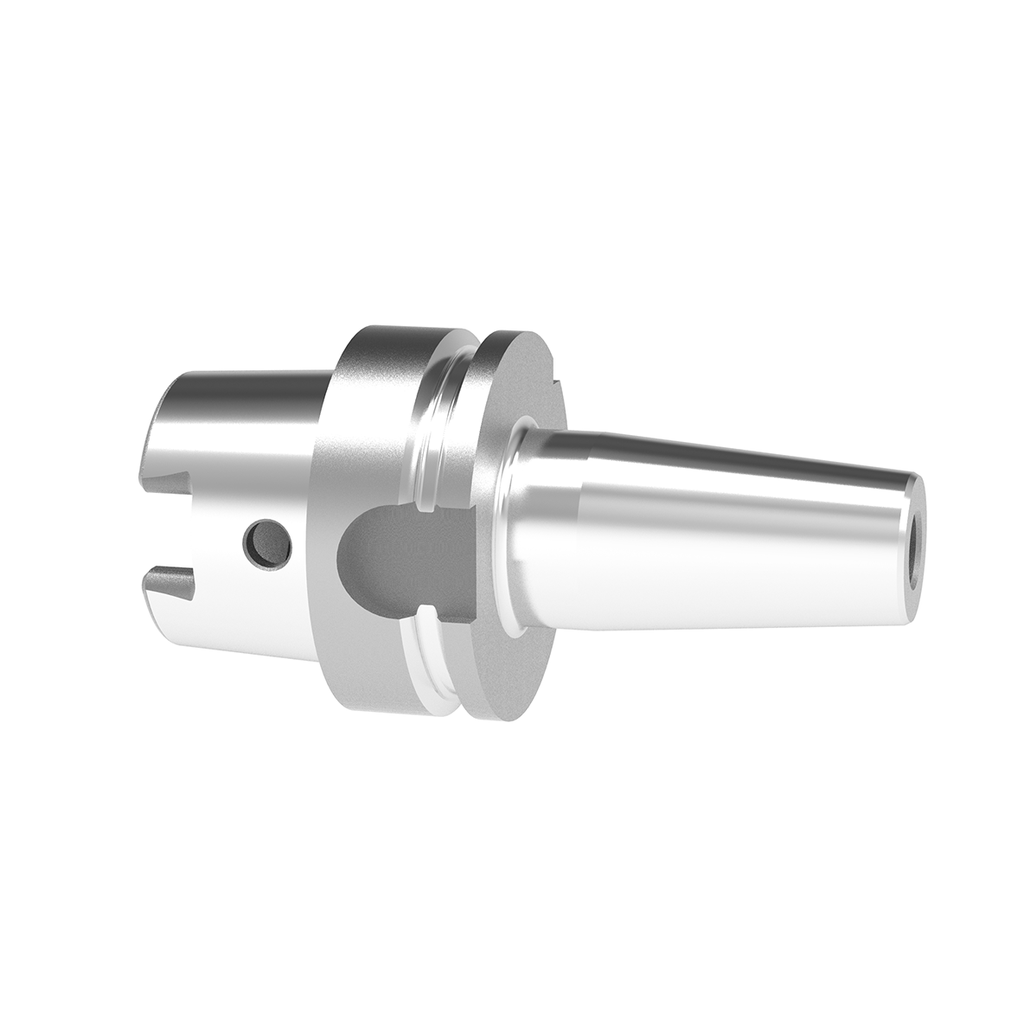

T0800-85-C1-HSK-A100 - ThermoGrip Cool Jet Chuck
Brand: Bilz |
Tool Shank Diameter: 8mm |
Gauge Length: 85mm |
Coolant Feed: Side Feed |
Max. RPM: 12,000 |
Balance: G2.5 at 25.000 RPM |
Runout: 3 µm |
Taper: HSK-A100 |
Chip: With data carrier bore |
HSS: Suitable for HSS shanks diameter 6mm or above |
Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.
• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design
Internal Reference:
5150255
