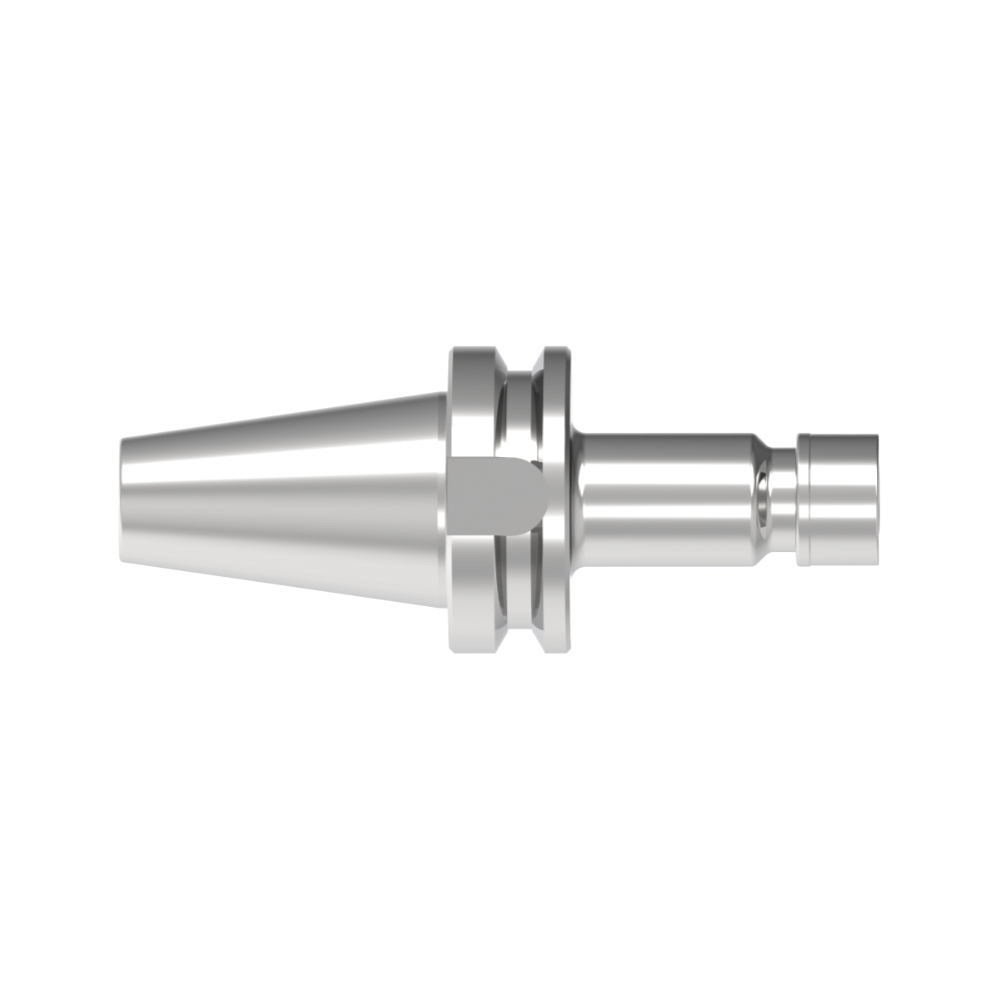

WSCH/SCF13-165/FBT50 - Super Collet Chuck
| Brand: Bilz |
| Taper: FBT50 |
| Gauge Length: 165mm |
| Coolant Feed: Central Feed (AD) |
| Concentricity: 2 µm |
| Balance: G2.5 at 25.000 RPM |
| SC Size: SC13 |
| ISO: ISO7388-2 (BT MAS 403) |
| Includes: Clamping Nut (Friction Type) and Adjusting Screw |
Our Super Collet chucks are perfect for high speed machining and for milling. Due to the optimaized collet geometry we are able to design our collet chucks very slim and with higher retention force.
Features:
• Excellent runout accouracy up to 5µ at 4D
• Claming force is twice as high as ER collet chucks
• Compact design
• Dynamically balanced G2.5 @ 25 000 U/ min
Internal Reference:
5127853
