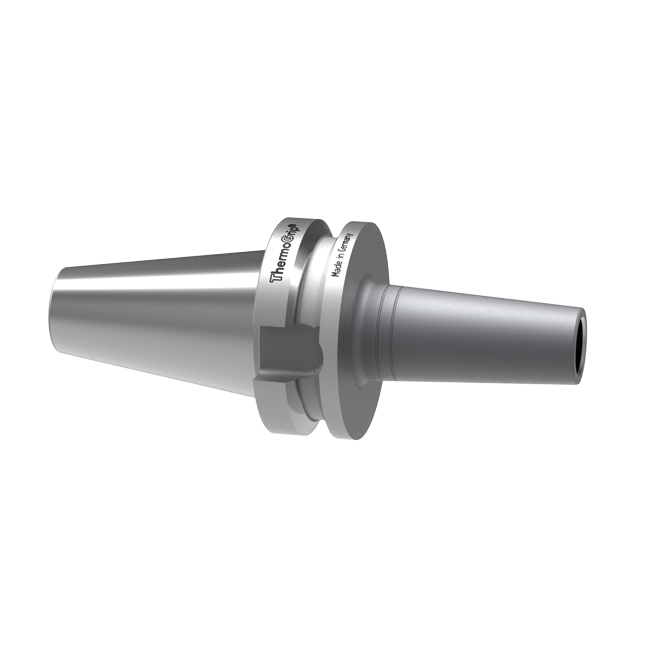

MSF2000-90-FBT40 - ThermoGrip Slim Chuck with Face Contact
Brand: Bilz |
Tool Shank Diameter: 20mm |
Gauge Length: 90mm |
Coolant Feed: Internal Feed |
Balance: G2.5 at 25.000 RPM |
Runout: 3 µm |
Taper: FBT40 |
Our ThermoGrip® shrink system stand for process secure tool change by perfect synergy between shrink machine and holder. It offers best surface quality, long tool life, higher feed rate and rotational speed - due to μ-pricese concentricity, high rigidity and extremely high retention forces.
Requires TSF Pole disc.
• Highest process security
• Cutter insertion into the cold chuck thus offering a hands-free shrink process
• Integrated counterbore for centring the tool
• All geometric designs available
• Industrial standard design
Internal Reference:
5126733
