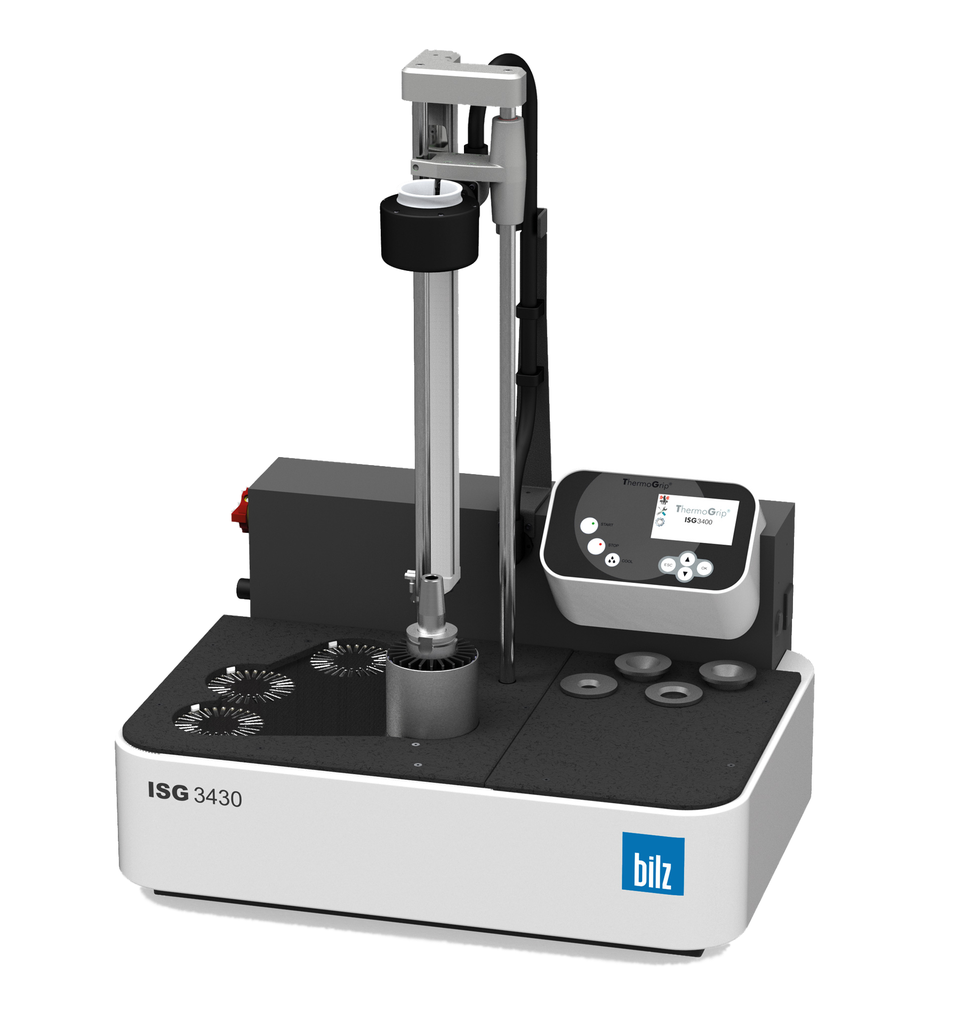

ISG3430TLK4A-WS - Shrink Fit Machine with Graphical Display
| Control Panel: Graphical |
| Clamping Range: 3 - 32mm |
| Max. Tool Length: 400mm @ HSK-A63 (680mm as an option) |
| Max. Cooling Length: 200mm @ HSK-A63 |
| Cooling Type: Air Cooled |
| Cooling Time: 300 sec |
| Power Requirements: 400V / 16A (3 Phase + Neutral + Earth) |
| Power Consumption: 11 kW |
| Dimensions: 800 x 588 x 1018 mm |
| Includes: Protective Gloves, Operation Manual, Coil 1 (3-32mm), 4 Pole Discs |
| Does Not Include: Tool Carrier or Cooling Adapter |
The ISG3430TLK4A semi-automatic shrink fit machine combines reliable shrinking with flexible air cooling for tool shanks up to 32 mm. It offers three separate cooling positions, allowing multiple tools to be cooled efficiently while maintaining consistent results. An intuitive graphical or touch control interface (depending on model) and semi-automated tooling movement reduce operator effort and improve process stability, making it ideal for workshops that want hands-on control with streamlined operation.
This model features quick-change coil system, designed for workshops that switch between tool sizes regularly.
Key benefits
• Semi-automatic operation helps shorten cycle times
• Three separate cooling positions increase throughput and flexibility
• Graphical or touch control interface matches operator preference
• Consistent, repeatable results with reduced operator influence
