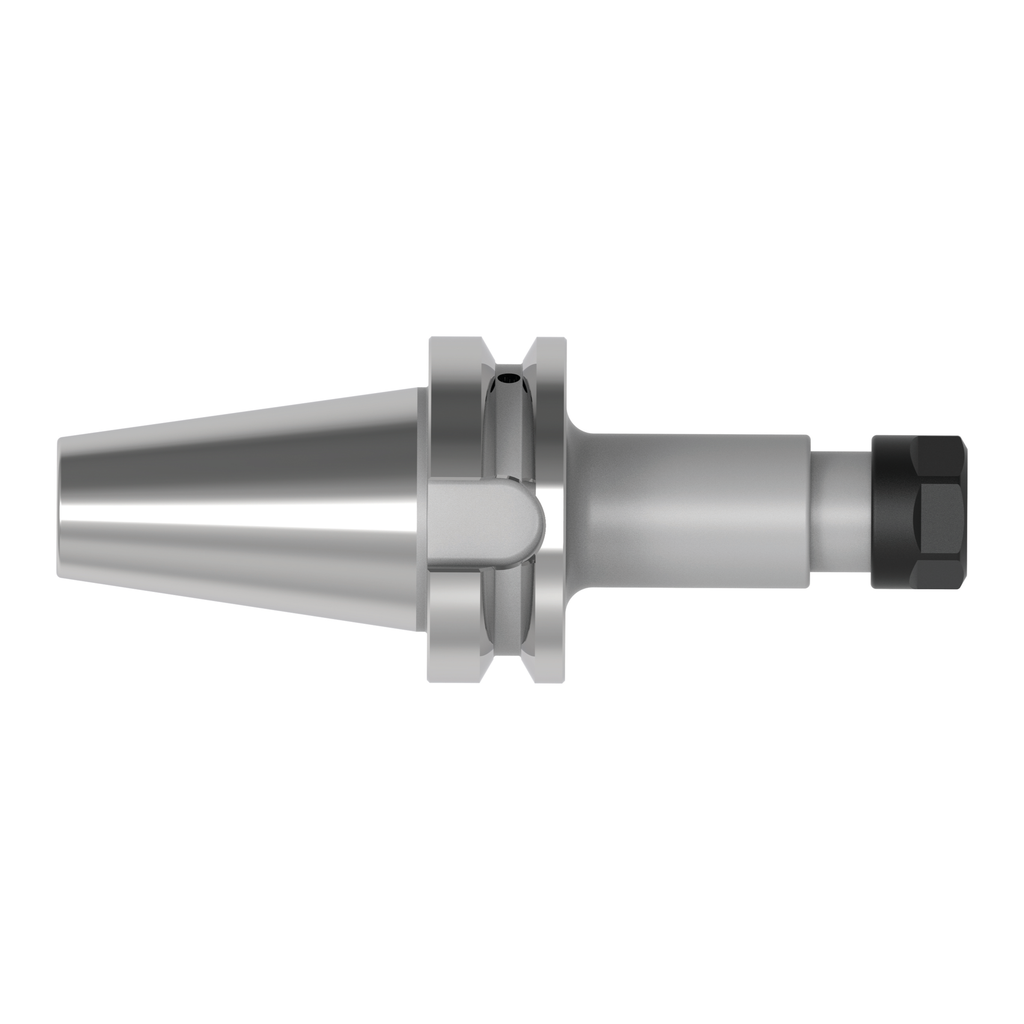

WCCH/ERC32-75/BT50 - ERC Collet Chuck
| Brand: Bilz |
| Taper: BT50 |
| Gauge Length: 75mm |
| Coolant Feed: Flange Through Coolant (AD/B) |
| Concentricity: 3 µm |
| Balance: G2.5 at 25.000 RPM |
| ER Size: ER32 |
| ISO: ISO7388-2 (BT MAS 403) |
| Includes: Clamping Nut (Balanced) and Adjusting Screw |
Achieve high precision and secure tool holding with our premium ER Collet Chucks. Designed for versatility and durability, these chucks ensure optimal performance in milling, drilling, and CNC machining applications. Compatible with a wide range of ER collet sizes (DIN 6499 / ISO 15488), they offer excellent concentricity and vibration resistance for superior machining accuracy.
Supplied with ER-IC / EX-IC coolant nut and sealing disc.
Internal Reference:
5104238
