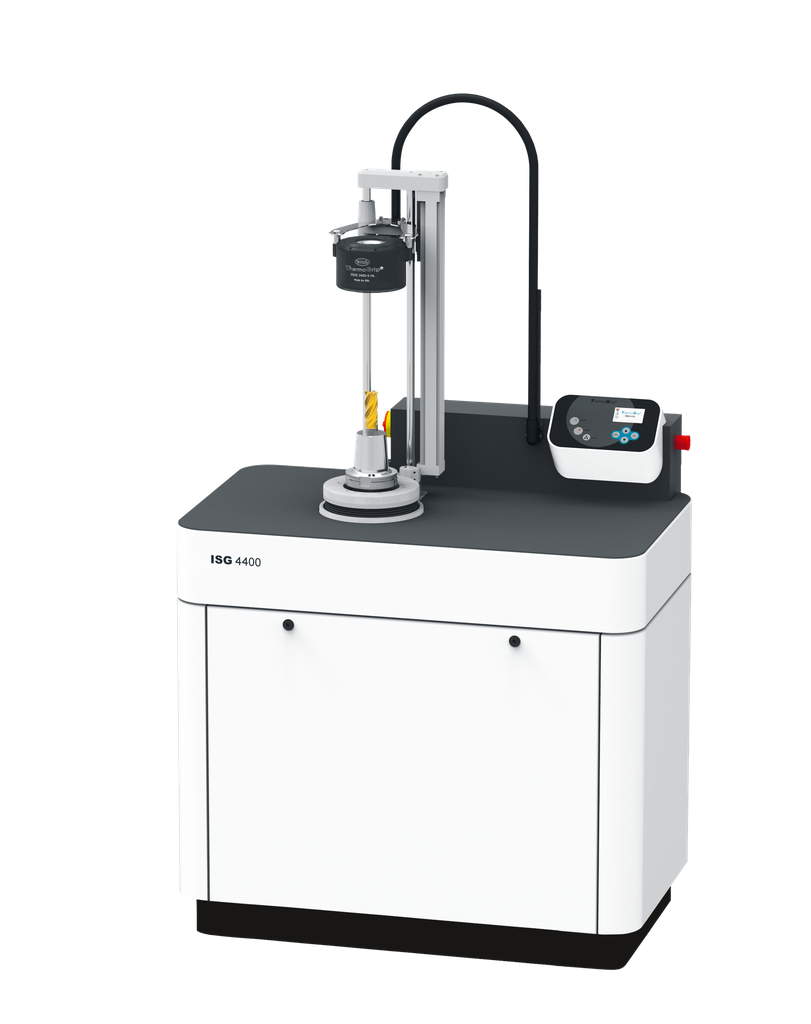

ISG4410WK2-HL-WS - Shrink Fit Machine with Graphical Display
| Control Panel: Graphical |
| Clamping Range: 3 - 50mm |
| Max. Tool Length: 800mm @ HSK-A125 |
| Max. Cooling Length: 350mm @ HSK-A125 |
| Cooling Type: Liquid Cooled, Geometry Independent |
| Cooling Time: 30 sec |
| Power Requirements: 400V / 16A (3 Phase + Neutral + Earth) |
| Power Consumption: 11 kW |
| Dimensions: 1200 x 690 x 2130 mm |
| Weight: 999kg |
| Includes: Protective Gloves, Operation Manual, Coil 1 (3-32mm), 2 litre Coolant Concentrate |
| Does Not Include: Tool Carrier |
The ISG4410WK2-HL-WS-BIL is the heavy-duty champion of fully automatic shrink fit machines, handling clamping from 3 mm to 50 mm and exceptional tool lengths up to 680 mm at HSK-A63 with specialised bottom-up cooling. Its robust liquid cooling and drying system ensures fast cycles with comprehensive thermal coverage for long-reach holders, while intuitive graphical interface simplify operation. Built for workshops processing large, varied cutting tools where maximum reliability and minimal handling are critical.
This model features quick-change coil system, designed for workshops that switch between tool sizes regularly.
Key Benefits
• Bottom-up cooling excels with extra-long 680 mm tools for complete coverage
• Heavy-duty construction reliably handles largest diameter holders up to 50 mm
• Fast cycles with liquid cooling/drying support high-volume, complex production
Internal Reference:
5101927
