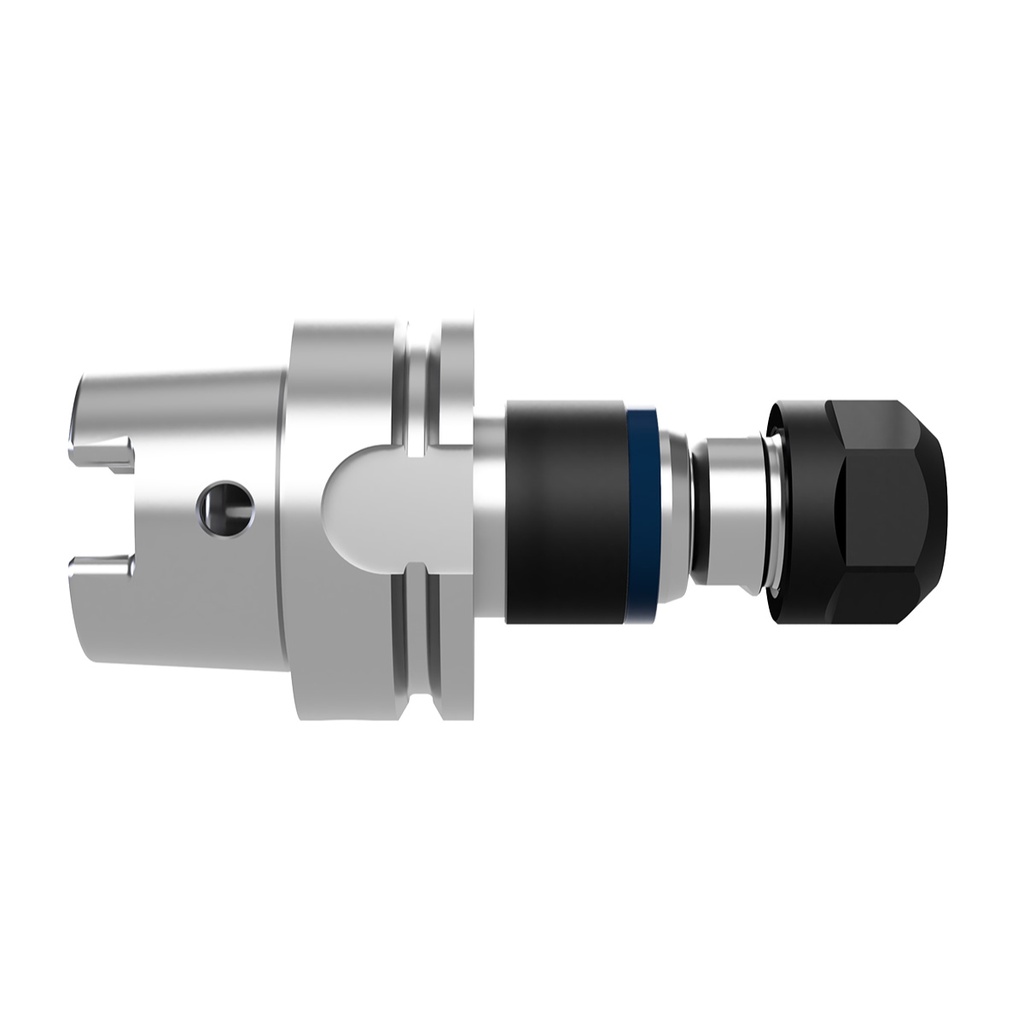

SCK3-138/HSK-A100-ESX40-BL - Synchro Chuck (M14 - M30)
| Brand: Bilz |
| Gauge Length: 138mm |
| ER Size: ER40 |
| Taper: HSK-A100 |
The S3D Synchro Chuck from Bilz is a cutting-edge, synchronized rotary index chuck designed for use in 5-axis machining applications. This innovative tooling solution provides unparalleled accuracy and efficiency, enabling machinists to produce complex parts with precision and speed.
Features:
• Minimum length compensation in compression and tension direction.
• Ball bearing mounted (i.e. torque independent) suspension.
• Suitable for internal coolant supply up to 80 bar.
• Suitable for taps and thread formers.
• Suitable for right-hand and left-hand threads.
• Optimized spring-damper technology (± 0.5mm).
• 3D Synchro completely encapsulated function chamber (washable up to 80°C).
• Optimized seal (comparable to IP68).
Internal Reference:
5017526
